Brand: Asrock

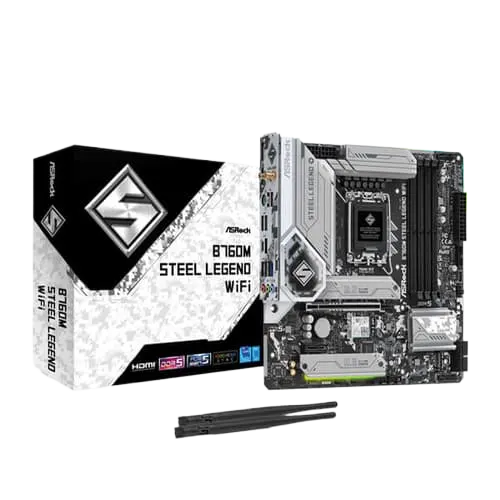

ASRock B760M Steel Legend WIFI M-ATX Motherboard

ASRock B760M Steel Legend WIFI M-ATX Motherboard

SKU : B760M-STEEL-LEGEND-WIFI

ā‚¹ 16,900.00
ā‚¹ 16,800.00 ā‚¹ 16,900.00
--1% OFF ą°…ą°®ą±ą°®ą±ą°”ą±ą°Ŗą±‹ą°Æą°æą°‚ą°¦ą°æ
ą°Ŗą°Øą±ą°Øą±ą°²ą± ą°šą±‡ą°°ą±ą°šą°¬ą°”ą±ą°”ą°¾ą°Æą°æ. ą°šą±†ą°•ą±ą°…ą°µą±ą°Ÿą± ą°µą°¦ą±ą°¦ ą°·ą°æą°Ŗą±ą°Ŗą°æą°‚ą°—ą± ą°²ą±†ą°•ą±ą°•ą°æą°‚ą°šą°¬ą°”ą±ą°¤ą±ą°‚ą°¦ą°æ.
Available EMI's: Credit | Debit | Cardless | BNPL

No Cost | Low Cost EMI Available upto 24 Months

Bajaj Finserv EMI: No Cost EMI Available upto 12 Months

Cancellation/Refunds fees applicable

Fees: 15% Will be deducted from Order Value!

Min Order Value ā‚¹5000 to ā‚¹75000 with Bajaj EMI Card.

Ships: Within 3 to 4 days Post Order

Delivery : Express 4-7 Days!   Standard 5-9 Days!

Get it between -

Save More with offers: CC | DC | EMI | NC/LC EMI

Get 10% Instant Discount upto ā‚¹3500 on Credit Cards

Get ā‚¹5000 Discount on No/Low Cost EMI with Selected Banks

Select offer/coupons at Checkout with - PayU Payment Page.

Features:

  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
    - 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
    - 1 USB 3.2 Gen2 Type-A (Rear),
    - 6 USB 3.2 Gen1 (4 Rear, 2 Front),
    - 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer

Ā DDR5 XMP & EXPO Support

Derived from the ā€œbuilt for stable and reliableā€ designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Specifications:

Ā Unique Feature Ā Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
Ā CPU

- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel Thermal Velocity Boost (TVB)
- Supports Intel Adaptive Boost Technology (ABT)
Ā Chipset Ā - Intel B760
Ā Memory Ā - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 192GB
- Supports IntelĀ® Extreme Memory Profile (XMP) 3.0
Ā BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Ā Graphics Ā - Intel Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Ā Audio Ā - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Ā LAN Ā - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Ā Wireless LAN Ā - 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Ā Slots Ā CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and IntelĀ® CNVio/CNVio2 (Integrated WiFi/BT)
- 15Ī¼ Gold Contact in VGA PCIe Slot (PCIE1)
Ā Storage Ā CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Ā RAID Ā - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Ā USB Ā - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Ā Connector Ā - 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Ā Rear Panel I/O Ā - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Ā Software and UEFI Ā Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
Ā Accessories Ā -1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets
Ā Form Factor Ā -Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB
Ā OS - Microsoft Windows 10 64-bit / 11 64-bit
Ā Certifications Ā -FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Ā Warranty Ā 3 Years
Note Features, Price, Specifications are subject to change without notice.Images used for representation purposes only
