Brand: Gigabyte

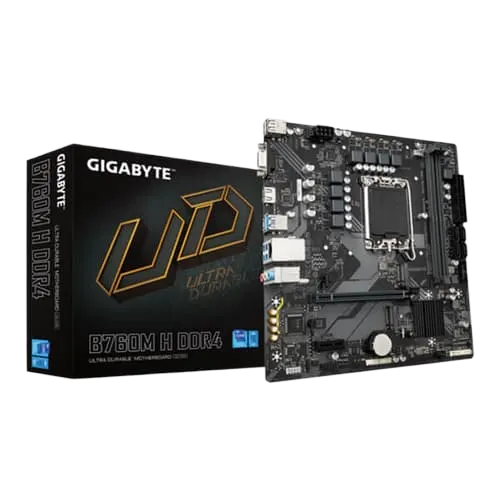

Gigabyte B760M H DDR4 M-ATX Motherboard

Gigabyte B760M H DDR4 M-ATX Motherboard

SKU : B760M-H-DDR4

₹ 9,900.00
₹ 17,000.00 ₹ 9,900.00
-41% OFF అమ్ముడుపోయింది
పన్నులు చేర్చబడ్డాయి. చెక్అవుట్ వద్ద షిప్పింగ్ లెక్కించబడుతుంది.
Available EMI's: Credit | Debit | Cardless | BNPL

No Cost | Low Cost EMI Available upto 24 Months

Bajaj Finserv EMI: No Cost EMI Available upto 12 Months

Cancellation/Refunds fees applicable

Fees: 15% Will be deducted from Order Value!

Min Order Value ₹5000 to ₹75000 with Bajaj EMI Card.

Ships: Within 3 to 4 days Post Order

Delivery : Express 4-7 Days!   Standard 5-9 Days!

Get it between -

Save More with offers: CC | DC | EMI | NC/LC EMI

Get 10% Instant Discount upto ₹3500 on Credit Cards

Get ₹5000 Discount on No/Low Cost EMI with Selected Banks

Select offer/coupons at Checkout with - PayU Payment Page.

Features:

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks：GbE LAN
  • Extended Connectivity：HDMI, D-Sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

6+1+1 Phases Hybrid Digital VRM Design
• 6+1+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Specifications:

Model Number B760M H DDR4
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 H
Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper
Back Panel Connectors 2 x USB 2.0/1.1 ports1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control
BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash
Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty 3 Years
Note Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
