Brand: MSI

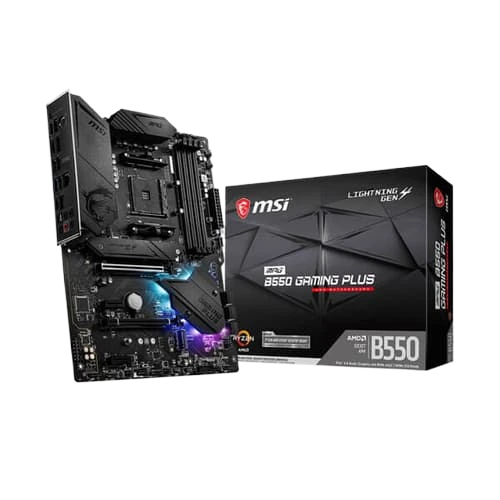

MSI MPG B550 Gaming Plus Motherboard

MSI MPG B550 Gaming Plus Motherboard

SKU : MPG-B550-GAMING-PLUS

₹ 14,502.00
₹ 20,700.00 ₹ 14,502.00
-29% OFF అమ్ముడుపోయింది
పన్నులు చేర్చబడ్డాయి. చెక్అవుట్ వద్ద షిప్పింగ్ లెక్కించబడుతుంది.
Available EMI's: Credit | Debit | Cardless | BNPL

No Cost | Low Cost EMI Available upto 24 Months

Bajaj Finserv EMI: No Cost EMI Available upto 12 Months

Cancellation/Refunds fees applicable

Fees: 15% Will be deducted from Order Value!

Min Order Value ₹5000 to ₹75000 with Bajaj EMI Card.

Ships: Within 3 to 4 days Post Order

Delivery : Express 4-7 Days!   Standard 5-9 Days!

Get it between -

Save More with offers: CC | DC | EMI | NC/LC EMI

Get 10% Instant Discount upto ₹3500 on Credit Cards

Get ₹5000 Discount on No/Low Cost EMI with Selected Banks

Select offer/coupons at Checkout with - PayU Payment Page.

Features:

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality

Specifications:

    CPU

    Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
    Chipset AMD B550 Chipset
    Memory
    • 4x DDR4 memory slots, support up to 128GB
      • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
      • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
        • 1DPC 1R max speed 4400 MHz
        • 1DPC 2R max speed 3866 MHz
        • 2DPC 1R max speed 4000 MHz
        • 2DPC 2R max speed 3600 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    • Supports un-buffered memory
    Expansion Slot
    • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
    • 2x PCIe 3.0 x1 slots
    1. The supported specification depends on installed processor.
    2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
    Multi-GPU Supports 2-Way AMD CrossFire Technology
    Onboard Graphics
    • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
    • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
    • Maximum shared memory of 16 GB
    1. Available for the processor with integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.
    Storage AMD B550 Chipset
    • 6x SATA 6Gb/s ports
    • 2x M.2 slots (Key M)
      • M2_1 slot (from AMD Processor)
        • Supports PCIe 4.0/ 3.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 slot (from AMD B550 chipset)
        • Supports PCIe 3.0x4
        • Supports 2242/ 2260/ 2280 storage devices
    1. The supported specification depends on installed processor.
    RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB AMD B550 Chipset
    • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
    Audio Realtek ALC892 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
    LAN 1x Realtek 8111H Gigabit LAN controller
    LED Features
    • 1x EZ LED Control switch
    • 4x EZ Debug LED
    Internal connectors
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 6x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x 4-pin RGB LED connector
    • 2x 3-pin RAINBOW LED connectors
    • 1xTPM module connector
    • 1x Clear CMOS jumper
    Back panel ports
    • PS/2 Combo Port
    • DisplayPort
    • LAN Port
    • USB 3.2 Gen 2 10Gbps (Type-A)
    • HD Audio Connectors
    • Flash BIOS Button
    • USB 2.0
    • HDMI
    • USB 2.0
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • USB 3.2 Gen 2 10Gbps (Type-C)
    • Optical S/PDIF OUT
    Dimensions
    • ATX Form Factor
    • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
    Mounting 9 mounting holes
    I/O Controller NUVOTON NCT6687-R Controller Chip
    Hardware Monitor
    • CPU/ System/ Chipset temperature detection
    • CPU/ System/ Pump fan speed detection
    • CPU/ System/ Pump fan speed control
    Warranty 3 Years
    Note

    Features, Price and Specifications are subject to change without notice.

    Images used for representation purpose only
