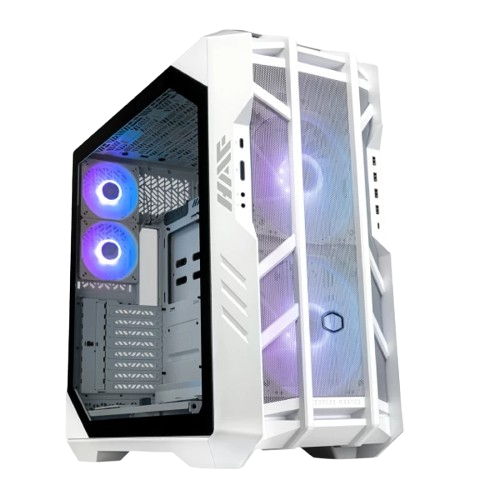

Cooler Master HAF 700 ARGB (E-ATX) Full Tower Cabinet (White)

HAF 700 Full Tower cabinet supports up to 480mm CPU cooler and pre-installed 200mm SickleFlow ARGB fan. Its innovative removable top panel and rotatable radiator/fan bracket ensure easy installation and maintenance, it ideal for custom cooling setup
Features:

Unparalleled Hardware & Cooling Capabilities
Mammoth Water Cooling Support
Exclusive Tool-Less Technology
ARGB Gen2 ready with MasterPlus+ integration
Mammoth Radiator Support

HAF 700 provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 480mm (side panel), 360mm (front panel, bottom panel, or up to dual radiators on the top panel), or 240mm (rear panel).

Rotatable Radiator Bracket

HAF 700 boasts two rotatable fan/radiator brackets. These brackets are fully modular and can be installed in multiple positions for complex setups. Users may choose one of the two to rotate, showcasing their radiator at unique angles.

Tool-less Removable Top Panel

Exclusive tool-less removable top panel design allows for easy removal of top and side panels. Cooling components such as fans and radiators can be effortlessly installed, accessed and maintained.

200mm SickleFlow White ARGB PWM Performance Edition

HAF 700 comes with dual 200mm Sickleflow PWM fans tailored to maximize the performance potential of installed components. Fan curves can be customized to keep temperatures and noise levels low, even in extreme overclocking scenarios.

Integrated 7x PWM & 5x ARGB Hub

This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices, allowing users to customize fan speeds and ARGB effects in depth according to their system needs or personal preference.

Unrestricted Front Panel Intake

HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake. With the front panel structurally
reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

Multi Chamber Layout

The body of the HAF 700 is organized into multiple sectors, including a cooling chamber, cable management gutter, dedicated
swiveling hard drive cage, as well as a power supply slot, allowing for complex yet tidy builds. Furthermore, by segregating non heat
sensitive components, heat dissipation can be optimized and targeted towards heat sensitive components at an overall higher
efficiency.

ARGB Gen2 Ready, Controller Included

ARGB Gen2 devices allow software to automatically detect the arrangement and number of LEDs in each ARGB device. Thus, ARGB Gen 2 devices make full range customization possible as each LED can be independently controlled.
Each device will be independently recognized, regardless of the number of devices connected to a single ARGB port, allowing users to create complex lighting setups with minimal wiring and configuration.
Unlike some ARGB Gen1 devices which sacrifice hardware compatibility for customization flexibility, Cooler Master’s ARGB Gen2 devices remain fully compatible with third party devices, granting users the freedom to mix and match multiple devices from different ecosystems.

Tool-less Vertical GPU Mounting (Patent Pending)

The back panel implements a patent pending clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools. This custom design locks the GPU firmly in place in case of transportation. Safety pins prevent the GPU from falling and being damaged when the clamp is opened.

Tool-less PSU Mount

HAF 700 implements a never-seen-before way of securing the power supply without the need to fiddle with tools. To install, simply
slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case.

Tool-less HDD Cage

The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access, maintain and swap hard
drives with ease.

Tool-less Multifunction Bracket (HDDs / SSDs / Pumps / Reservoirs)

HAF700 features versatile brackets that can be used to mount an SSD, HDD, or a pump/reservoir for liquid cooling. Brackets can be placed in multiple positions inside the case, including the cooling
brackets and the open side of the motherboard tray.

Specification:

Model    H700-WGNN-S00
Exterior Color    White
Materials - Exterior    Mesh, Steel, Plastic
Materials - Left Side Panel    Tempered Glass, Steel, Plastic
Dimensions (L x W x H)
556 x 279 x 540 mm (Body Size)
666 x 291 x 626 mm (incl. Protrusions)
Motherboard Support    Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB
Expansion Slots    8
2.5" / 3.5" Drive Bays (Combo)    9 (4 HDD bracket, 5 Screw+Rubber)
I/O Panel - USB Ports
1x USB 3.2 Gen 2 Type C
4x USB 3.2 Gen 1 (3.0)
I/O Panel - Audio In / Out
1x 3.5mm 4 Poles Audio Jack
1x 3.5mm Mic Jack
Pre-installed Fans - Front    2x SickleFlow 200 ARGB PWM
Pre-installed Fans - Rear    2x SickleFlow 120 ARGB PWM
Pre-installed Fans - Bottom    1x SickleFlow 120 ARGB PWM
Fan Support - Top
2x 200mm
3x 140mm
6x 120mm (Remove 480mm bracket)
Fan Support - Front    2x 200mm
Fan Support - Rear    2x 120mm
Fan Support - Bottom    3x 120/140mm
Fan Support - Side    4x 120mm / 3x 140mm
Radiator Support - Top    Up to 2x 360mm / 1x 420mm
Radiator Support - Rear    Up to 240mm
Radiator Support - Bottom    Up to 420/360mm
Radiator Support - Side    Up to 480/420/360mm
Clearance - CPU Cooler    166mm / 6.53 inch
Clearance - PSU    200mm / 7.87 inch
Clearance - GFX    490mm / 19.29 inch
Cable Routing - Behind Motherboard Tray    90-101mm
Included Accessories
1x Rotatable Radiator Bracket
1x LED Controller A1 (ARGB Gen2)
1x ARGB/PWM Hub
Dust Filters    Bottom, Right side
Power Supply Support    Bottom Mount, E-ATX
Series    HAF Series
Size    Full Tower
Warranty    2 Years
