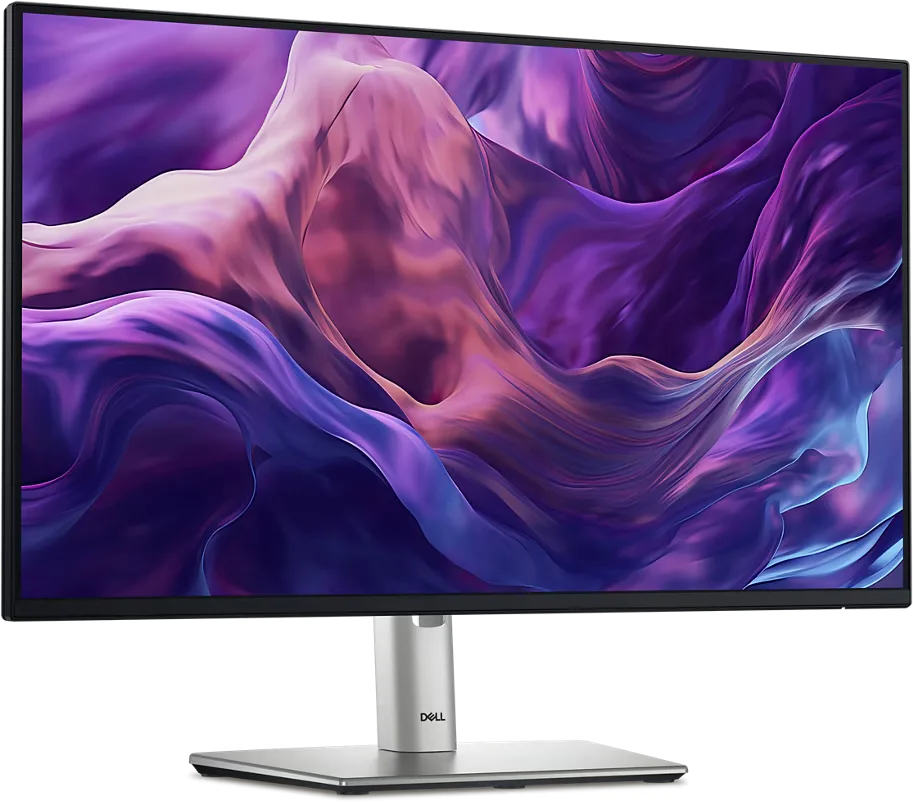

Dell 24 USB-C Hub Monitor - P2425HE

Tech Specs
Technical Information
Diagonal Viewing Size
23.8" (60.45 cm)
Preset Display Area (H x V)
52.70 cm x 29.64 cm (20.75" x 11.67")
Area: 156,246.28 mm2 (242.18 inches2)
Panel Type
In-Plane Switching (IPS) technology
Display Screen Coating
Anti-glare with 3H hardness
Maximum Preset Resolution
1920 x 1080
Refresh rate
100 Hz
Viewing Angle
178° vertical / 178° horizontal
Pixel Pitch
0.2745 mm x 0.2745 mm
Pixel Per Inch (PPI)
92.53
Contrast Ratio
1,500: 1 (typical)
Aspect Ratio
16:9
Backlight Technology
LED edgelight system
Brightness
250 cd/m2 (typical)
Response Time
5ms gray-to-gray (Fast mode)
8ms gray-to-gray (Normal mode)
Color Support
Up to 16.7 million colors
Color Gamut
99% sRGB
TÜV Eye Comfort
Yes, 4-Star
Ficker Free
Yes
Connectivity

    1x HDMI 1.4 (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz TMDS as per specified in HDMI 1.4)
    1x DP 1.4 (HDCP 1.4)
    1x DP-out (1.4) with MST (HDCP 1.4)
    1x RJ45
    1x USB 3.2 Gen1 Type-C upstream (Alt. mode with DP1.4) with up to 90W PD
    3x USB 3.2 Gen1 Type-A downstream
    1x USB 3.2 Gen1 Type-C downstream with up to 15W PD (data only)

Built-in Speaker
No
USB Power Delivery
Yes, up to 90W via USB-C upstream (Alt. mode with DP1.4) port, and up to 15W via USB-C downstream port
Adjustability
Height, Tilt, Swivel, Pivot
Height
Up to 14.98 cm (5.9")
Tilt
-5°/+21°
Swivel
-45°/+45°
Pivot
-90°/+90°
Daisy Chain Availability
Yes
Dell Power Button Sync
Yes, via USB Type-C upstream port
Dell Display Manager Compatibility
Yes with Easy Arrange
Remote Asset Management
Yes
Voltage Required
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2 A (typ)
Power Consumption (Operational) (typical)
0.3 W (Off mode)
0.3 W (Standby mode)
1.0 W (Networked Standby mode)
13.9 W (On mode)
180 W (Max)
15.2 W (Pon)
49.8 kWh (TEC)
Audio Output
Optional soundbar (sold separately)
Security
Security-lock slot (based on Kensington Security Slot™)
Compliant Standards
ENERGY STAR certified monitor
EPEAT GOLD
EPEAT Climate+
TCO Certified Displays
TCO Certified Edge
RoHS-compliant
BFR / PVC free monitor (excluding external cables)
Arsenic-free glass and mercury-free (panel only)
Flat Panel Mount Interface
VESA (100 mm x 100mm)
Temperature Range
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating: -20° ~ 60°C (-4° ~ 140°F)
Humidity Range
Operating: 10% ~ 80% (non-condensing)
Non-operating: 5% ~ 90% (non-condensing)
Altitude
Operating: 5,000 m (16,404 ft) max
Non-operating: 12,192 m (40,000 ft) max
What's Included

    1x Monitor panel
    1x Stand riser and base
    1x Cable tie
    1x Quick setup guide
    1x Safety, Environmental, and Regulatory Information

Cables Included

    1x Power cord
    1x DP-to-DP cable, 1.8m
    1x USB 3.2 Gen2 Type C-to-C cable, 1.0m

Physical Characteristics
Height with stand (Compressed ~ Extended)
364.00 mm ~ 496.53 mm
Width with stand
538.64 mm
Depth with stand
181.75 mm
Height without stand
314.23 mm
Width without stand
538.64 mm
Depth without stand
50.03 mm
Weight (panel only - for VESA mount)
3.69 kg
Weight (with packaging)
7.24 kg
Warranty
Specifications - Service / Support Details
3 Year Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange
