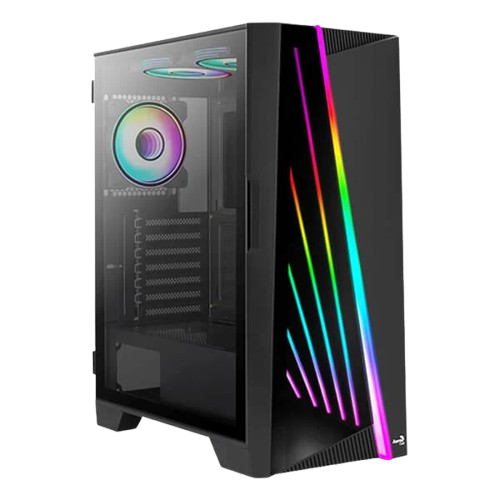

AeroCool Mirage ARGB Cabinet (Black)

Features
Featuring a glass mirror design with ARGB LED strips, this high-performance mid tower case achieves an infinity effect to deliver a truly unique and mesmerizing lighting experience. Full tempered glass side panel with a convenient hinge design allows for easy opening and closing.

Addressable RGB fans can be controlled using one of two ways: RGB LED control button or Addressable
RGB motherboard. Includes a 6-Port ARGB control hub to connect and control your ARGB fans.

Infinity mirror ARGB design in the front panel delivers a mesmerizing look and feel
Includes a 6-port ARGB control hub to connect and control your Addressable RGB fans
Full tempered glass side panel with a convenient hinge design and handle
Fan mounts on the PSU shroud support up to two 12cm fans for superior VGA cooling
Supports liquid cooling in the front, top, and rear of the case
FINITY MIRROR ARGB DESIGN

Featuring a glass mirror design with ARGB LED strips, the Mirage achieves an infinity effect with what seems like endless ARGB rings to deliver a truly unique and mesmerizing lighting experience.

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors using compatible ARGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion (with 5V 3-Pin ARGB header).

Addressable RGB can be controlled using any of two ways: LED control button or ARGB motherboard.

6-PORT RGB CONTROL HUB

Features a 6-port hub with PWM control functions and allows you to connect up to six 6-Pin AeroCool Addressable RGB fans and up to two 3-Pin Addressable RGB accessories with +5V ARGB connector.

Access 16.8 million colors using compatible Addressable RGB motherboard (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM COMPATIBILITY

Please check if the 4-Pin fan header on your motherboard is PWM compatible.

• PWM based – PWM compatible
• Voltage based – not PWM compatible

For more information, refer to our PWM Compatibility Guide.

FULL TEMPERED GLASS SIDE PANEL WITH HINGE DESIGN

Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig.

AIR COOLING

Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

Front: 120mm x 3 or 140mm x 2 (Max.)
Top: 120mm x 2 or 140mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
PSU Shroud: 120mm x 2 (Max.)

LIQUID COOLING

Supports liquid cooling in the front, top, and rear of the case for maximum efficiency cooling.

Front: 120/240/280/360mm Radiator (Optional)
(for 360mm, radiator length <394mm)
(for 240/280/360mm, radiator plus fan total thickness <60mm)
Top: 120/240mm Radiator (Optional)
Rear: 120mm Radiator (Optional)

COOLING FOR YOUR GRAPHICS CARD

Fan mount design on the PSU shroud supports graphics card cooling: 2 x 120mm fans for superior VGA cooling.

DUAL CHAMBER DESIGN

Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

BUILT FOR HIGH PERFORMANCE

Supports ATX, Micro-ATX, and Mini-ITX motherboards
Supports CPU coolers up to 162mm
Supports graphics cards up to 356mm
(without front fan)

CONVENIENT ACCESS TO YOUR MEDIA

Quick and easy access to LED control button, 2 x USB 3.0, 1 x USB 2.0, HD audio and mic ports, and power button.

STORAGE CAPABILITY

Supports up to 2 x 3.5” HDDs (2 x 3.5”/2.5″), and 5 x 2.5” SSDs (3 x 2.5” and 2 x 2.5”/3.5”).

EASY MAINTENANCE

Removable dust filters on the top and bottom of the case for fast and convenient cleaning.

Specifications

Model    Mirage
Case Type    Mid Tower
Color    Black
Body Material    SPCC
Front Panel Material    ABS + Tempered Glass
Steel Thickness    0.5mm
Motherboards    ATX/micro ATX/mini-ITX
Case Dimensions (Internal)    210 x 465 x 360mm (W x H x D)
Case Dimensions (Overall)    216 x 499 x 417.5mm (W x H x D)
3.5” Drive Bays    2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays    5 Max. (3 x 2.5” and 2 x 2.5”/3.5”)
Expansion Slots    7
GPU Clearance    Supports GPU up to 356mm (without front fan)
CPU Clearance    Supports CPU up to 162mm
Air Cooling    Front: 120mm x 3 or 140mm x 2 (Max.)
Top: 120mm x 2 or 140mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Liquid Cooling    Front: 120/240/280/360mm Radiator (Optional)
(for 360mm, radiator length <394mm)
(for 240/280/360mm, radiator plus fan total thickness <60mm)
Top: 120/240mm Radiator (Optional)
Rear: 120mm Radiator (Optional)
I/O Ports    USB3.0 x 2 +USB2.0 x 1| HD Audio & Mic.
Internal Cable Management Depth    23.6mm
Power Supply    ATX PSU (Including cables, up to 194mm) (Optional)
Warranty    1 Yea
