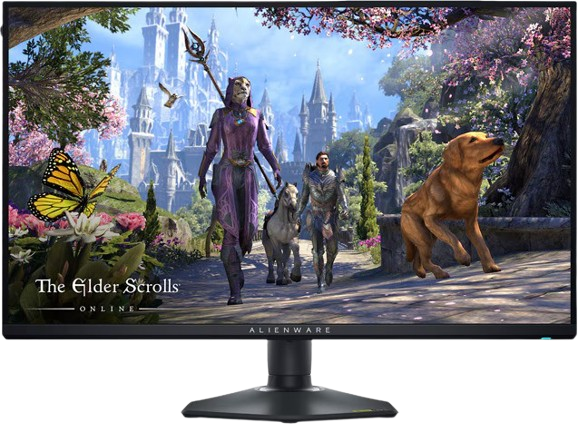

Dell Alienware 27 4K Dual-Resolution Gaming Monitor - AW2725QF

Tech Specs
Technical Information
Number of Screens 1
Screen Size Class 27" (68.58 cm)
Viewable Screen Size 27" (68.58 cm)
Screen Mode 4K FHD
Panel Technology
In-plane Switching (IPS) Technology
Response Time
500 µs
Response Time Details

    0.5ms GTG
    1ms GTG (Extreme Mode)

Aspect Ratio
16:9
Pixel Pitch
0.1554 mm x 0.1554 mm
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type Panel Mount
Backlight Technology Edge LED
HDCP Supported Yes
Maximum Adjustable Height 110 mm
Tilt Angle -5° to 21°
Swivel Angle -20° to 20°
Pivot -90° to 90°
Features

    Narrow Bezel
    Cable Lock Slot
    Security Lock
    Picture in Picture
    Picture by Picture
    Anti-glare
    NVIDIA G-SYNC
    Dolby Vision
    VESA DisplayHDR 600

Stand Adjustments

    Swivel
    Height
    Pivot
    Tilt

Stand Included Yes
Adjustable Stand Height Yes
Glass Hardness3H
Low Blue Light Yes, ComfortView Plus (Hardware solution)
Video
Maximum Resolution

    3840 x 2160 up to 180 Hz (4K mode) (overclock up to 180 Hz)
    1920 x 1080 up to 360 Hz (FHD mode) (overclock up to 360 Hz)

Standard Refresh Rate
180 Hz
Color Supported
1.07 Billion Colors
Native Contrast Ratio
1,000:1
Brightness

    400 cd/m2 (typical)
    600 cd/m2 (HDR peak)

Tearing Prevention Technology

    NVIDIA G-SYNC Compatible
    VESA AdaptiveSync

Color Gamut
95% DCI-P3 (CIE 1976)
Pixel Per Inch (PPI)
163
Interfaces/Ports
Connectivity

    Two HDMI 2.1 ports (HDCP 1.4 and HDCP 2.2), (Supports 3840 x 2160 at 165 Hz, 1920 x 1080 at 330 Hz, FRL, HDR, VRR as per specified in HDMI 2.1) (including one HDMI 2.1 FRL with eARC to support Dolby ATMOS signal pass-through)
    One DisplayPort 1.4 connector (HDCP 1.4 and HDCP 2.2), (Supports 3840 x 2160 at 165 Hz, 1920 x 1080 at 330 Hz, DSC, HDR)

    One USB-B 3.2 Gen1 upstream port (5 Gbps)
    Two USB-A 3.2 Gen1 downstream ports (5 Gbps)

    One USB-C 3.2 Gen1 downstream port (5 Gbps)
    One USB-A 3.2 Gen1 downstream port (5 Gbps) with BC1.2 power charging

USB Type-C (Power Delivery)
15 W
Audio Line Out
No
Built-in Devices
Built-in Devices
No
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 104°F (40°C)
Non-operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range
10% to 80% (Non-condensing)
Non-operating Humidity Range
5% to 90% (Non-condensing)
Maximum Operating Altitude
16404 ft (4999939.20 mm)
Maximum Non-operating Altitude
40000 ft (12192000 mm)
Power Description
Operating Power Consumption
26.10 W
Standby Power Consumption
500 mW
Off-Mode Power Consumption
300 mW
Frequency

    50 Hz
    60 Hz

Maximum Power Consumption
140 W
Voltage Current
1.60 Ah
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
361.18 mm
Width
611.44 mm
Depth
67.40 mm
Height with Stand
518.68 mm
Width with Stand
611.44 mm
Depth with Stand
243.70 mm
Compressed Height with Stand
408.68 mm
Extended Height with Stand
518.68 mm
Weight (Approximate)
4.75 kg
Weight with Stand (Approximate)
7.15 kg
Miscellaneous
Package Contents

    AW2725QF Widescreen LED Monitor
    Stand
    Alienware Sticker
    Quick Start Guide
    Safety, Environmental, and Regulatory Information

Cables Included

    1 x Power Cable
    1 x DisplayPort- DisplayPort 1.4 Cable - 1.80 m
    1 x HDMI 2.1 FRL cable - 1.80 m
    1 x USB 3.2 Gen 1 (5 Gbps) Upstream Cable (Type A to Type B) - 1.80 m

Dell Display Manager Compatibility
Yes
Environmental Compliance

    RoHS Compliant
    BFR/PVC Reduce monitor (The circuit boards are made from BFR/PVC-free laminates)
    Meets NFPA 99 leakage current requirements
    Arsenic-Free glass and Mercury-Free for the panel only
