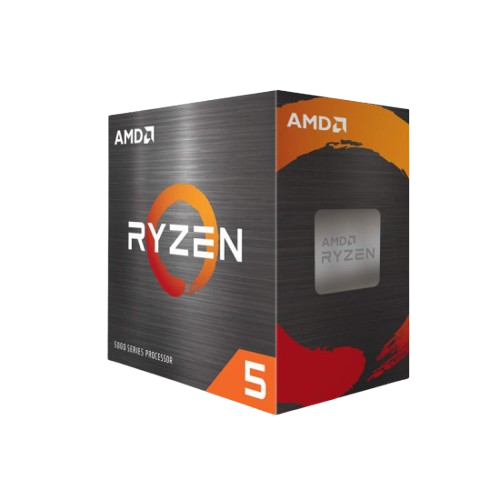

AMD Ryzen 5 5500 Processor - 100-100000457BOX

Description
Specification:

Platform    Desktop
Market Segment    Mainstream Desktop
Product Family    AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 5 Desktop Processors
Consumer Use    Yes
Architecture    “Zen 3”
CPU Cores    6
Multithreading (SMT)    Yes
Threads    12
Max. Boost Clock    Up to 4.2GHz
Base Clock    3.6GHz
L1 Cache    384KB
L2 Cache    3MB
L3 Cache    16MB
Default TDP    65W
Processor Technology for CPU Cores    TSMC 7nm FinFET
CPU Compute Die (CCD) Size    180mm²
Package Die Count    1
Unlocked for Overclocking    Yes
CPU Socket    AM4
Socket Count    1P
Supporting Chipsets    X570, X470, X370, B550, B450 B350, A520
CPU Boost Technology    Precision Boost 2
Instruction Set    x86-64
Supported Extensions    AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)    AMD Wraith Stealth
Max. Operating Temperature (Tjmax)    90°C
*OS Support    Windows 11 – 64-Bit Edition
Windows 8.1 – 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity
Native USB 3.2 Gen 1 (5Gbps) Ports    0
USB Type-C® Support    Yes
Native USB 4 (40Gbps) Ports    0
Native USB 3.2 Gen 2 (10Gbps) Ports    4
Native USB 2.0 (480Mbps) Ports    0
Native SATA Ports    2
PCI Express® Version    PCIe 3.0
Native PCIe® Lanes (Total/Usable)    24/20
Additional Usable PCIe Lanes from Motherboard;
AMD X570 16x Gen 3
AMD X470 2x Gen 3
AMD X470 8x Gen 2
NVMe Support;    Boot, RAID0, RAID1, RAID10
System Memory Type    DDR4
Memory Channels    2
Max. Memory    128GB
System Memory Subtype    UDIMM notice
System Memory Specification    Up to 3200MHz
Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support    No
Graphics Capabilities
Integrated Graphics    No
Graphics Model    Discrete Graphics Card Required
& Product ID    100-100000457BOX
Warranty    3 Years
