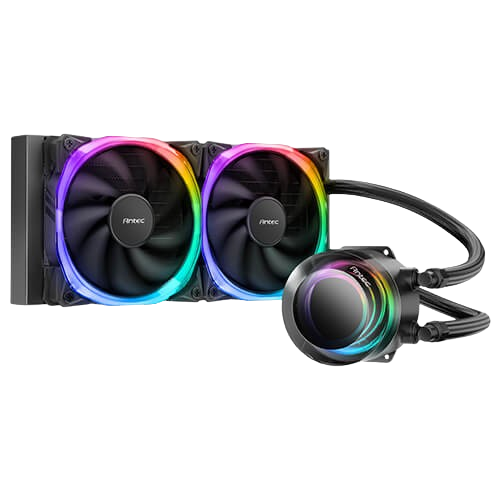

Antec Vortex 240 ARGB 240mm CPU Liquid Cooler (Black)

Antec VORTEX 240 Black ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting.
Features:

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Specification:

Model    VORTEX-240-ARGB
Color    Black
Radiator
Radiator Dimensions    277 x 120 x 27 mm
Radiator Material    Aluminum
Tdp Number    Vortex240 240W
Pump
Dimensions    ￠67 x 48.5 mm
Rating Voltage    DC 12 V
Minimum Startup Voltage    ≥ 5.0 V
Fan Speed    2800±10% RPM
Rated Current    0.25±20% A
Consumed Power    3.0 W
Flow rate    ≥ 1300 mL / min
Water Pressure    1.4M
Operation Temperature    -10°C ~ +60°C
Noise Level    ≤ 28 dB(A)
Lifespan    40,000 hours
Connector    PUMP: 3-pin | LED: 3-pin
Fan
Model Name    Fusion 120 ARGB fan (AH12012FM1)
Fan Type    PWM Fan
Dimensions    120 x 120 x 25 mm
Bearing Type    Hydraulic Bearing
LED Type    Addressable RGB
Fan Speed    600±200 ~ 2000±10% RPM
Airflow    57.93 CFM (max.)
Air Pressure    2.11 mmH₂O (max.)
Fan Noise Level    31.24 dB(A)
Lifespan    40,000 hours
Connector    FAN: 4-pin PWM | LED: 3-pinRated Voltage
Rated Voltage    FAN: DC 12 V | LED: DC 5 V
Operation Voltage    FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current    FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU    Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3/AM4/AM5
Warranty    3 Years
