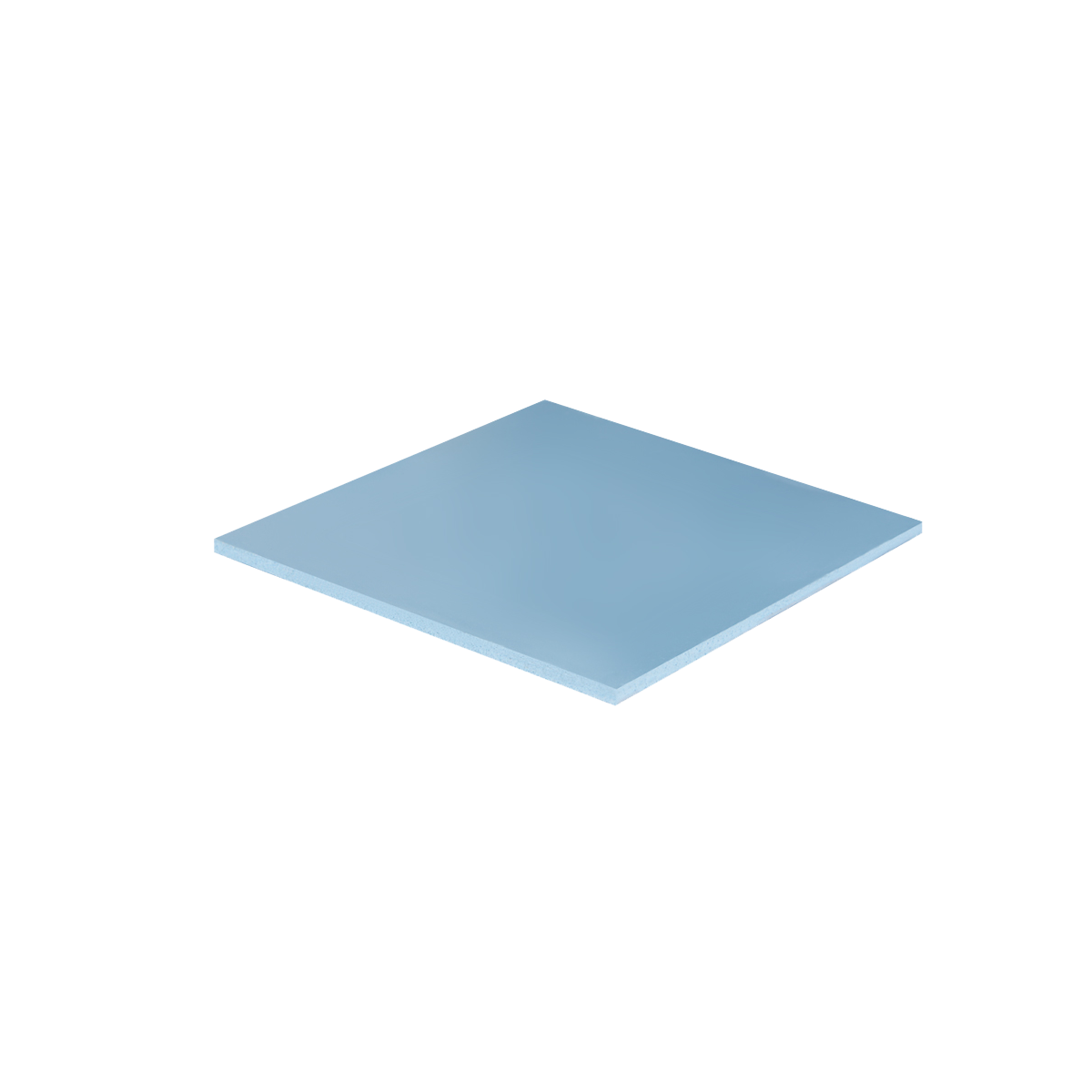

Arctic APT2560 Thermal Pad (50x50x1.5mm)

Features:

Efficient thermal conductivity
The thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads.

Excellent price/performance ratio

In a test conducted by PC Games Hardware (11/2018), the pads‘ "excellent processability and reusability in every respect" were praised. Because of its fair pricing and good performance, our thermal pad was recommended as a "price-performance recommendation".

Bridging the gap

Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.

Easy installation and safe handling

The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely.
The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since contact with electrical parts does not lead to damage.

Available in different strengths and sizes

Our thermal pads are available in 0.5 mm, 1.0 mm and 1.5 mm. Its slimness makes the 0.5 mm variant an excellent alternative to heat-conducting film. Depending on the thickness of the pads, they are available in different sizes.

Specifications:

Material
APT2560
Product Dimention    50x50x1.5mm
Colour    Blue
Hardness    50 Shore OO
Continuous Use Temperature    -40~200 ℃
Specific Gravity:    3.2 g/cm³
Thermal Conductivity:    6.0 W/(m K)
Dielectric Constant @1MHz:    13.0264
Volume Resistance:    1 X 1012 Ω-cm
Flammability Rating:    UL 94 V-0
Packaging
Width: 112 mm
Height: 94 mm
Length: 0.5 mm
Weight: 0.01 kg
