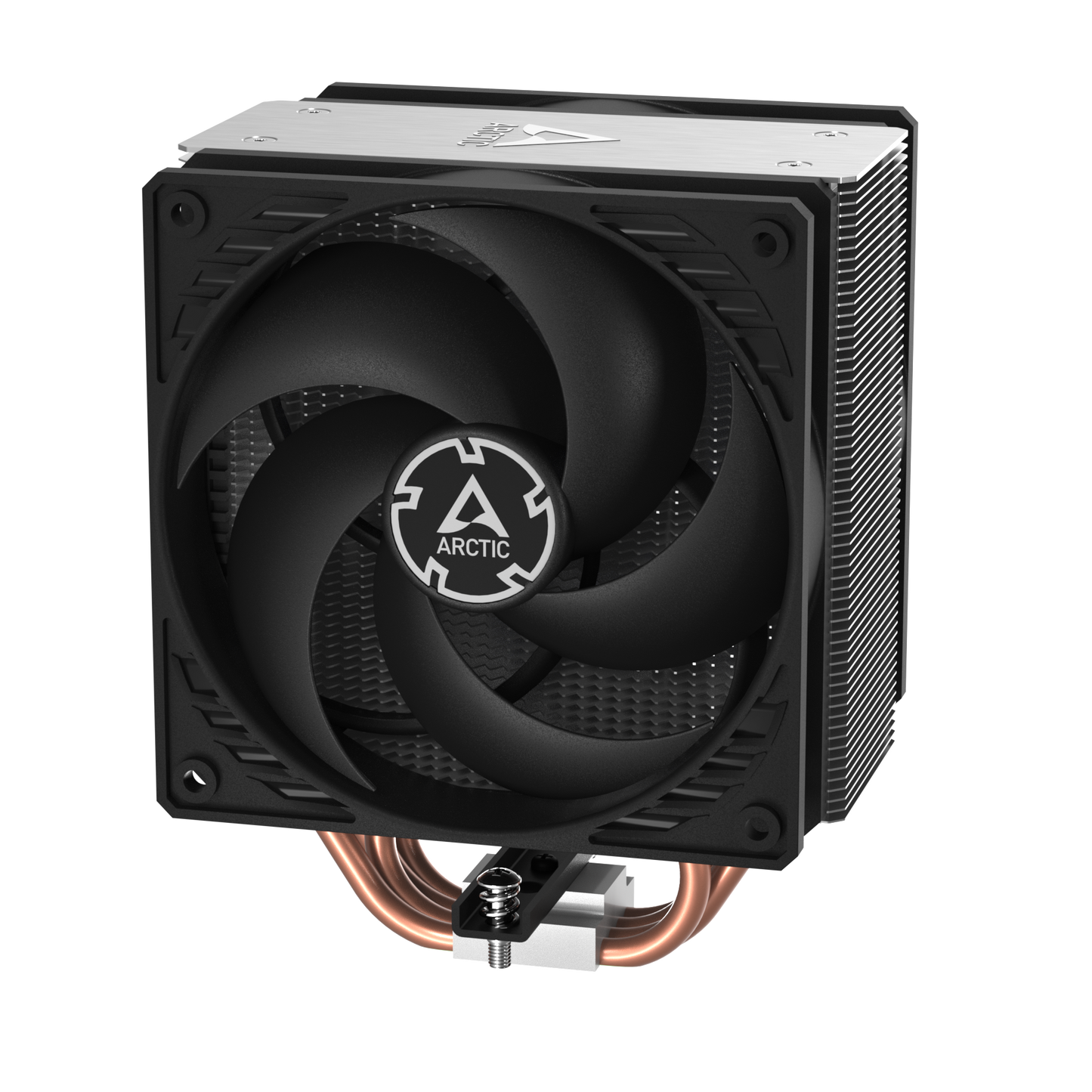

Arctic Freezer 36 CO CPU Air Cooler

Arctic Freezer 36 CO is a black color design, 120mm CPU air cooler which is compatible with Intel LGA 1700 and AMD sockets AM5.
Features:

High-Class Finish with Aluminium Top Plate
With its push-pull configuration, the Freezer 36 CO not only impresses with its efficient cooling performance, but also with its design. The soldered ends of the heatpipes are concealed by the screwed aluminium cover, allowing it to blend seamlessly into any PC setup and highlight both performance and appearance.

Future-Proof Compatibility
The Freezer 36 CO is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Freezer 36 can be used with the new LGA1851 socket from Intel without limitation.

Improved Fan Mounting
Thanks to the innovative mounting system, booth fans are effortlessly mounted in the heatsink using a click system. This mounting method eliminates the need for fan clips, making it easier to install the cooler or replace the fans, even if the cooler is already installed. The Freezer 36 CO is therefore compatible with most 120 mm fans.

LGA1851 | LGA1700 Contact Frame
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the DIE and the solder layer between the DIE and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.

Designed for Continuous Operation
Both fans of the Freezer 36 CO are each equipped with two japanese ball bearings. This makes these fans particularly durable and resistant to external forces such as heat, dust and vibrations. This variant is therefore the ideal choice for 24/7 operation.

Optimised Heatsink
The fins of the heatsink are open at the side and allow the pull fan to draw additional cool air out of the pc case through the heatsink. This side-flow design achieves even more efficient ventilation.

P-Fans with High Static Pressure
ARCTIC relies on the proven P fans, which are known for their powerful performance. The P series is particularly suitable for use on heat sinks and radiators. Due to the dense fin structure of heat sinks, the fans used achieve significantly better performance than fans designed for airflow thanks to their high static pressure.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications:

 Model Name    Freezer 36 CO (ACFRE00122A)
  Compatibility
 Intel     LGA1851 | LGA1700
 AMD      AM5 | AM4
 PI | NNPI      250 | 234
 TIM      MX-6 (0.8 g)
 Operating Ambient Temperature      0—40 °C
 Dimensions      104 (L) x 126 (W) x 159 (H) mm
 Weight      890 g
  Heatsink
 Heatpipes      4x 6 mm Ø, Copper
 Fin Stack      59x 0.4 mm, Aluminium
  Fans
 Fan      2x P12 PWM PST CO
 Speed      200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM)
 Bearing      Dual Ball Bearing
 Current | Voltage      0.10 A | 12 V DC
 Cable Lenght      200 mm + 80 mm Splitter Cable
 Connector      4-Pin PWM-Connector + 4-Pin Plug
  Packaging
  Width      186 mm
  Height     117 mm
  Length     190 mm
 Weight     1.23 kg
 Warranty     6 Years
