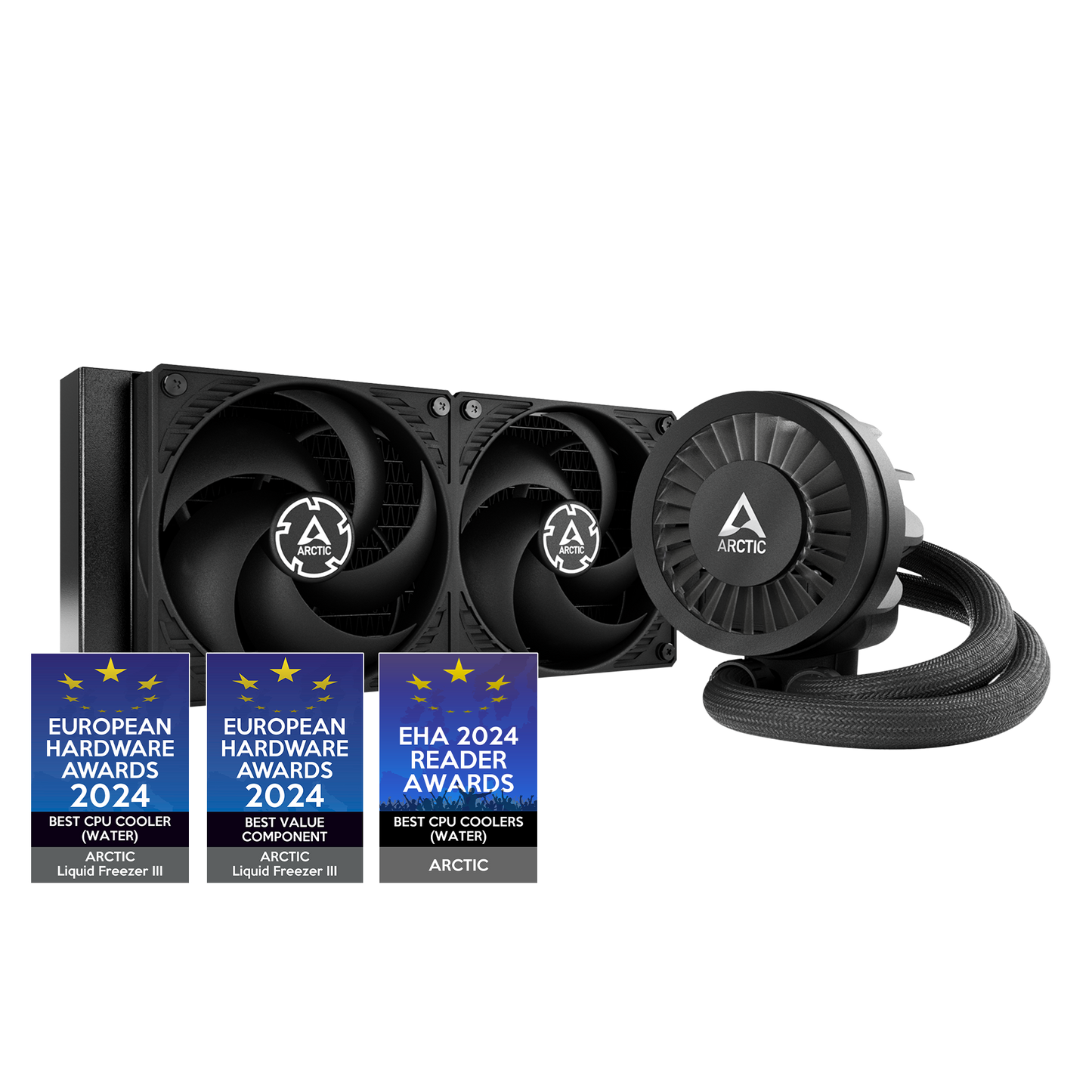

Arctic Liquid Freezer III 240 CPU Liquid Cooler (Black)

Arctic Liquid Freezer III 240mm Black CPU cooler is multi-compatible with Intel LGA1700 and AMD AM5 sockets. It is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise.
Features:

Liquid Freezer III 240

Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.

Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.

Outstanding Performance
In independent tests, the Liquid Freezer III clearly stands out from the competition in all price categories, particularly due to its outstanding performance. In noise normalised tests, the Liquid Freezer III shows its true strength, outperforming many competitors with its quiet yet powerful operation.

Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.

Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.

Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.

Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.

Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.

High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.

Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications:

 Model Name     Liquid Freezer III 240 (ACFRE00134A)
 Color     Black
 Compatibility
 Intel      1700
 AMD     AM5, AM4
 PI | NNPI      308 | 230
 TIM      MX-6 (0.8 g)
 Operating Ambient Temperature      0—40 °C
 Weight      1490 g
 All-In-One Connector      4-Pin PWM Connector
 Splitt Connector      3x 4-Pin PWM Connector
  Pump
 Pump      800—2800 rpm (PWM controlled)
 Current | Voltage      0.35 A | 12 V DC
 Cold Plate      Copper, Micro Skived Fins
 Tube Length      450 mm
 Tube Diameter
 Outer: 12.4 mm

 Inner: 6.0 mm

  Radiator
 Material      Aluminium
 Dimensions      277 (L) x 120 (W) x 38 (H) mm
  VRM Module
 VRM Fan     400—2500 rpm (PWM controlled)
 Current | Voltage      0.05 A | 12 V DC
  Radiator Fans
 Fan      2x P12 PWM
 Speed     200—1800 rpm
 Air Flow      56.30 cfm | 95.65 m3/h
 Static Pressure      2.20 mmH2O
 Bearing     Fluid Dynamic Bearing
 Current | Voltage     0.10 A | 12 V DC
 Cable Lenght      40 mm
 Connector      4-Pin PWM Connector
  Packaging
  Width     171 mm
 Height     142 mm
 Length     294 mm
 Weight     1.9 kg
 Warranty     6 Years
