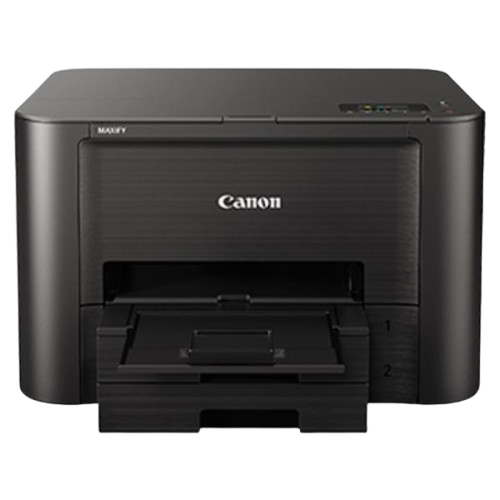

Canon Maxify iB4170 Color Inkjet Printer (Black)

High Capacity Paper Cassettes

The printer is equipped with two high-capacity paper cassettes (500 sheets) , which saves the hassle for frequent paper loading.
Highlighter and Water Resistant Documents

The high density pigment ink not only produces crisp and sharp text, it is also water and highlighter resistant.
Status / Error Email Notification

With status / error email notification, time can be saved on checking individual printers’ status by presetting administor’s email address to receive status and errors notification.
*Items that can be notified

    Ink Low
    Ink Empty
    Out of Paper
    Print Errors
    Printer Problems
    Administrator Information Updates

Setting Restrictions

Administrator can perform password restrictions for printer settings to protect office confidentiality and reduce printing cost.
Description Specifications Additional information Reviews (0) Q & A
Maximum Printing Resolution     600 (horizontal) x 1 200 (vertical) dpi
Print Head / Ink     Type:      Individual Ink Cartridges
Number of Nozzles:     Total 4 352 nozzles
Ink Cartridge:     PGI-2700 (Cyan, Magenta, Yellow, Black) Optional: PGI-2700XL (Cyan, Magenta, Yellow, Black)
Print Speed*1 Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions     Document: Colour *1: ESAT / Simplex     15.5ipm
Document: Colour:     Maximum 26.5ppm*2
Document: B / W *1: ESAT / Simplex     24.0ipm
Document: B / W:     Maximum 32.5ppm*2
Document: Colour *1: ESAT / Duplex     9.5ipm
Document: B / W *1: ESAT / Duplex     13.0ipm
Document: Colour *1: FPOT Ready / Simplex     7s
Document: B / W *1: FPOT Ready / Simplex     6s
Document: Colour *1: FPOT Sleep / Simplex     12s
Document: B / W *1: FPOT Sleep / Simplex     10s
Printable Width     203.2mm
Printable Area     Bordered Printing:     Top margin: 3mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Bordered Auto Duplex Printing:     Top margin: 3mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Recommended Printing Area     Top Margin:     45.8mm
Bottom Margin:     36.8mm
Paper Size     A4, A5, B5, Letter, Legal, Oficio, B-Oficio*, M-Oficio, Foolscap, Legal (India), Executive, 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), Envelopes (DL, COM10, C5, Monarch) Custom size [cassette (upper)]: width 89 - 216.0mm, length 127 - 355.6mm, [cassette (lower)]: width 210 - 216.0mm, length 279.4 - 355.6mm) *Not supported for Mac
Paper Handling (Cassette 1: Upper) (Maximum Number)     Plain Paper     A4, A5, B5, Letter, Legal = 250
Photo Paper Pro Luster (LU-101)     A4 = 10
Matte Photo Paper (MP-101)     10.x16x15.24cm (4 x 6in) = 20, A4 = 10
Photo Paper Plus Glossy II (PP-201)     10.x16x15.24cm (4 x 6in) = 20, A4 = 10
Glossy Photo Paper "Everyday Use" (GP-508)     10.x16x15.24cm (4 x 6in) = 20, A4 = 10
High Resolution Paper (HR-101N)     A4 = 65
Photo Paper Plus Semi-Gloss (SG-201)     10.x16x15.24cm (4 x 6in)=20, A4, 20.32x25.4cm (8 x 10in) = 10
Envelope     Envelopes (DL, COM10, C5, Monarch) = 10
Paper Handling (Cassette 2: Lower) (Maximum Number)     Plain Paper     A4, Letter, Legal = 250
Paper Output     75 pages (A4, Letter, Legal)
Support Media for Auto 2-sided Printing     Type:     Plain Paper
Size:     A4, Letter
Paper Weight     Cassette 1 (Upper):     Plain Paper: 64 - 105g/m2, Canon specialty paper: max paper weight:  275g/m2 (Photo Paper Plus Glossy II, PP-201)
Cassette 2 (Lower):     Plain Paper: 64-105g/m2
Ink End Sensor     Electrical pulse detect + Dot count
Print Head Alignment     Auto / Manual
Network
Protocol     SNMP (Standard MIB), TCP / IP
Wired LAN     Network Type:     IEEE802.3u 100BASE-TX/ IEEE802.3 10BASE-T
Data Rate:     10M / 100Mbps (auto switchable)
Wireless LAN     Network Type:     IEEE802.11n / IEEE802.11g / IEEE802.11b
Frequency Band:     2.4GHz
Channel:     1 - 13
Range:     indoor 50m (depends on the transmission speed and conditions)
Security:     WEP64 / 128bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
Direct connection (Wireless LAN)     Available
Printing Solutions
Apple AirPrint     Available
Layout     1-up (bordered only)     Letter, A4, 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), A5, B5, Legal, A6, Oficio, M-Oficio, Foolscap, Legal (India), Executive, Envelopes (DL, COM10, C5, Monarch) Custom size [cassette (upper)]: width 89 - 216.0mm, length 127 - 355.6mm, [cassette (lower)]: width 210 - 216.0mm, length 279.4 - 355.6mm)
Print Quality*3     Standard / High
Microsoft Mobile Print     Available
Layout     1-up (bordered only)     Letter, A4, 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), A5, B5, Legal, Envelopes (DL, COM10)
Print Quality*3     Standard / High
Mopria     Available
Canon Print Service Plugin (for Android OS)     Available
PIXMA / MAXIFY Cloud Link     from smartphone or tablet:     Available
from printer:     Available
Canon PRINT Canon Easy-PhotoPrint (for Windows RT)     Available
Layout     1-up (bordered only)     Letter, A4, 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), A5, B5, Legal, A6, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive
Print Quality     Fixed
System Requirements (Please visit www.canon-asia.com to check OS compatibility and to download the latest driver updates.)     Windows:     Windows 10, Windows 8, Windows 7 SP1, Windows Vista SP2
Macintosh:     Mac OS X v10.8.5 and later
General Specifications
Operation Panel     Display:     Full dot
Language:     32 Languages Selectable: Japanese / English (mm & cm) / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovak / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Croatian / Vietnamese
Interface     USB B Port     USB 2.0 High Speed
Operating Environment *3     Temperature: 5 - 35°C Humidity: 10 - 90% RH  (no dew condensation)
Recommended Environment*4     Temperature: 15 - 30°C Humidity: 10 - 80% RH  (no dew condensation)
Storage Environment     Temperature: 0 - 40°C Humidity: 5 - 95% RH  (no dew condensation)
Quiet mode     Available
Acoustic Noise (PC Print)     Document (A4, B / W, Default) *5     56dB
Power     AC 100 - 240V 50 / 60Hz
Power Consumption     Standby (scanning lamp is off) USB connection to PC     0.9W
OFF     0.3W
Printing *6 (USB connection to PC)     27W
Typical Electricity Consumption (TEC)*7     0.2kWh
Environment     Regulation:     RoHS (EU, China)*, WEEE (EU)* *To be fixed
Eco-Label:     Energy Star* *To be fixed
Duty Cycle     30,000 pages/month
Dimension (W x D x H)     Factory configuration     463 x 394 x 290mm
Paper installed (A4 / LTR)     463 x 459 x 290mm
Output / ADF trays extended     463 x 607 x 290mm
Weight     9.6kg
