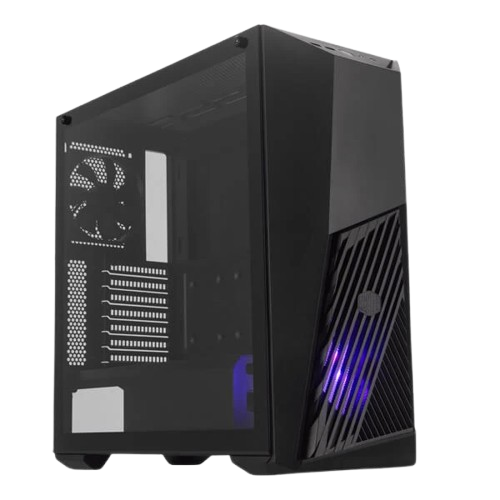

Cooler Master MasterBox K501L RGB (Black)
Cooler Master MasterBox K501L RGB (Black)
SKU : MCB-K501L-KGNN-SR1
Features:
Angled Ventilation – The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.
Illuminated Fan & Power Button – Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.
Top Panel Ventilation – For increased thermal performance, the top panel is ventilated to support cooling components and filtered to protect against dust.
Cooling Support – Support for up to 6 fans and top, front, and rear water cooling ensure a high capacity for thermal performance.
Edge-to-Edge Tempered Glass Side Panel – Showcase your build through the 4mm tempered glass side panel.
Clean Routing Space – There is 19~27mm width of space behind the motherboard tray to efficiently manage and organize cables.
Versatile Component Support – Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 200mm for PSUs offer room for powerful builds and future upgrades.
Specifications:
Model Number MCB-K501L-KGNN-SR1
Color Black
Materials Tempered Glass
Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
Expansion Slots 7
5.25" Drive Bays 0
2.5" / 3.5" Drive Bays (combo) 2
2.5" Drive Bays 4 (2+2 combo)
I/O Panel 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
Pre-installed Fans - Top N/A
Pre-installed Fans - Front 1x 120mm RGB LED
Pre-installed Fans - Rear 1x 120mm
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Front 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm
Fan Support - Bottom N/A
Clearance - CPU Cooler 165mm/6.49"
Clearance - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
Clearance - GFX 410mm/16.1"
Cable Routing 19mm/0.74"
Dust Filters Top, Front, Bottom
Power Supply Support Bottom mount, ATX
Warranty 2 Years
