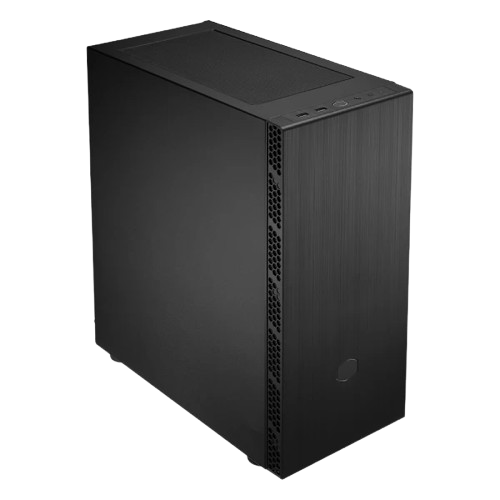

Cooler Master MasterBox MB600L V2 Cabinet (Black)

MASTERBOX MB600L V2

SENSIBLE BY DESIGN

Brushed Front Panel
Hexagon Gleam
Mesh Intakes
Without ODD Support
Versatile Cooling Options
Breathable Power Supply Shroud
Room For Upgrades
Removable HDD Cage
PALETTE & BRUSH

Each element of the MasterBox MB600L was created from an elegant palette. With a brushed finish, subtle hue, and the minimalistic Cooler Master hexagon, this ATX PC case decorates the gaming setup and workspace while also being able to house the latest hardware.

BRUSHED FRONT PANEL
A brushed finish spans the entire front panel for an elegant and minimalistic design.

HEXAGON GLEAM
The Cooler Master hexagon on the front panel relays light from optional, illuminated fans. If an optional RGB or ARGB fan is installed behind the front panel, the hexagon will capture light from the fan and emit a glow on the front panel.

MESH INTAKES
Large, mesh intakes span each side of the front panel to provide additional airflow to system.

WITH/WITHOUT ODD SUPPORT
Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported. The ODD version of the MB600L is slightly deeper in comparison to its non-ODD counterpart.

VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

BREATHABLE POWER SUPPLY SHROUD
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.

ROOM FOR UPGRADES
Support for up to a 400mm graphics card, a 161mm CPU cooler, and multiple fan/radiator locations provide room for upgrades to stay ahead of the game.

*clearances vary per model

REMOVABLE HDD CAGE
The modular frame allows builders to remove the drive cage completely, providing a greater freedom in building and increased compatibility for long power supplies.

Specifications

MODEL    MB600L2-KNNN-S00
SERIES    MasterBox Series
SIZE    Mid Tower
AVAILABLE COLOR(S)    Black
MATERIALS    Steel, Plastic
DIMENSIONS (L X W X H)    405.5x204x455.3mm (incl. Protrusions)
VOLUME (EXLC. PROTRUSIONS)    37.15L
MOTHERBOARD SUPPORT    Mini ITX, Micro ATX, ATX
EXPANSION SLOTS    7
5.25" DRIVE BAYS    0
2.5" / 3.5" DRIVE BAYS (COMBO)    2
2.5" DRIVE BAYS    2
I/O PANEL    2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP    N/A
PRE-INSTALLED FANS - FRONT    N/A
PRE-INSTALLED FANS - REAR    1x 120mm
FAN SUPPORT - TOP    2x 120/140mm
FAN SUPPORT - FRONT    3x 120mm, 2x 140mm, 3x 120mm
FAN SUPPORT - REAR    1x 120mm
RADIATOR SUPPORT - TOP    120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator)
RADIATOR SUPPORT - FRONT    120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR    120mm
CLEARANCE - CPU COOLER    161mm
CLEARANCE - PSU    160mm (MB600L2-K*NN-S00),
CLEARANCE - GFX    350mm (w/o front fans & radiator)
CABLE ROUTING    18.5mm
DUST FILTERS    Front, Top, Bottom
POWER SUPPLY SUPPORT    Bottom mount, ATX
WARRANTY    2 Years
