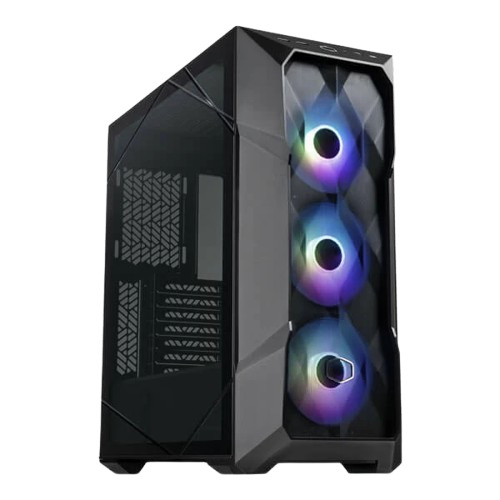

Cooler Master MasterBox TD500 Mesh V2 ARGB (E-ATX) Mid Tower Cabinet (Black)

Features:

MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

Polygonal FineMesh Front Panel
Three CF120 ARGB Fans Included
USB 3.2 Gen 2 Type C Support
Tool-Free Crystalline TG Side Panel
PSU Shroud With Removable Cover
ARGB Controller Included
Removable Top Panel
Removable HDD cage
FineMesh Performance Front Panel

Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

Available in both Black & White colorations

MasterBox TD500 Mesh V2 is available in both black so you can choose the color that best matches your setup!

Three CF120 ARGB Fans Included

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 Gen 2 Type C Support

USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ARGB/FAN HUB Included

The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

Removable Top Panel

The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

Tool-Free Crystalline TG Side Panel

Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

Versatile Cooling Options

Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

PSU Shroud With Removable Cover

MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

Hardware Compatibility

MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".

Specification:

Model Number    TD500V2-KGNN-S00
Exterior Color    Black
Materials - Exterior    Steel, Mesh, Plastic
Materials - Left Side Panel    Tempered Glass
Dimensions (L x W x H)    499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
Volume    50L (excl. Protrusions)
Motherboard Support    Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots    7
3.5" Drive Bays    2
2.5" Drive Bays    3
I/O Panel - USB Ports    2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O Panel - Audio In / Out    1x Audio Jack
I/O Panel - Other    1x ARGB Fan Hub
Pre-installed Fans - Front    3x 120mm CF120 ARGB
Fan Support - Top    3x 120mm, 2x 140mm
Fan Support - Front    3x 120mm, 2x 140mm
Fan Support - Rear    1x 120mm
Radiator Support - Top    120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support - Front    120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Rear    120mm
Clearance - CPU Cooler    165mm / 6.49"
Clearance - PSU    200mm, (Recommended up to 170mm)
Clearance -GFX    410mm / 16.14"
Cable Routing - Behind Motherboard Tray    19mm / 0.74"
Dust Filters    Front, Top, Bottom
Power Supply Support    Bottom Mount, ATX
Series    MasterBox Series
Warranty    2 Years
