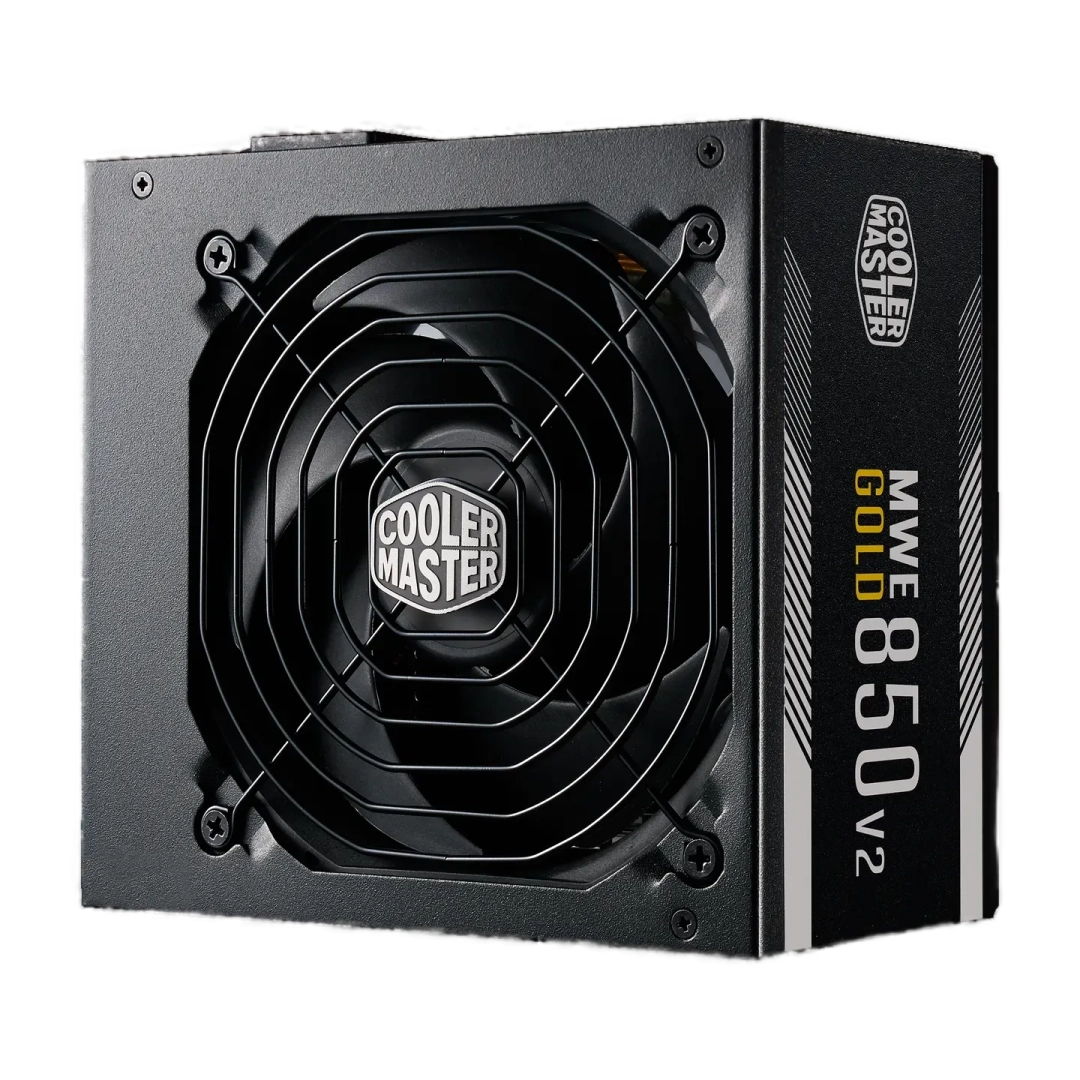

Cooler Master MWE 850 V2 80 Plus Gold SMPS

Features:

80 Plus Gold Efficiency
2 EPS Connectors
120mm HDB Fan
High Temperature Resilience
Full Modular Cabling
5 Year Warranty
Power Up

The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.

Specifications:

Model     MPE-8501-AFAAG-IN
ATX Version    ATX 12V Ver. 2.41
PFC    Active PFC
Input Voltage    100-240V
Input Current    12-6 A
Input Frequency    47-63Hz
Dimensions (L x W x H)    160 x 150 x 86 mm
Fan Size    120mm
Fan Bearing    HDB
Fan Speed    1500 RPM
Noise Level @ 20%    0 dBA
Noise Level @ 50%    17.9 dBA
Noise Level @ 100%    25.9 dBA
Efficiency    ≥90% @ Typical Load
80 PLUS Rating    80 PLUS Gold
ErP 2014 Lot 3    Yes
Power Good Signal    100 - 150 ms
Hold Up Time    >16ms at 100% Full Load
MTBF    >100,000 Hours
Protections    OVP, OPP, SCP, UVP, OTP
Regulatory    TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
ATX 24-Pin Connectors    1
EPS 4+4 Pin Connectors    1
EPS 8 Pin Connector    1
SATA Connectors    12
Peripheral 4-Pin Connectors    4
PCI-e 6+2 Pin Connectors    4
Serie    MWE Gold Series
80 Plus    Gold
Modular    Fully Modular
Wattage    Above 750W
Warranty    5 Years
