Brand: Cooler Master

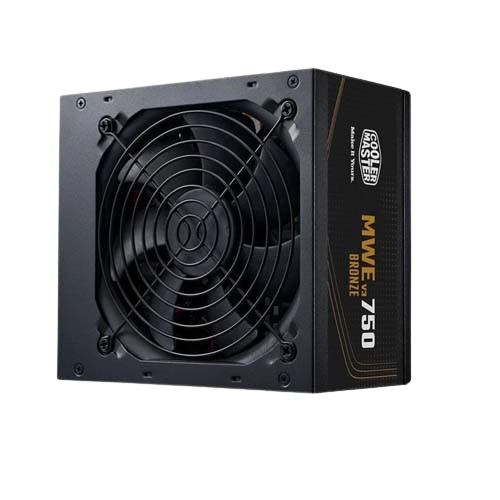

Cooler Master MWE Bronze 750 V3 ATX 3.1 80 Plus Bronze SMPS

Cooler Master MWE Bronze 750 V3 ATX 3.1 80 Plus Bronze SMPS

SKU : MPE-7501-ACABW-3BIN

Regular price β‚Ή 6,500.00
Regular price β‚Ή 9,899.00 Sale price β‚Ή 6,500.00
-34% OFF Sold out
Taxes included. Shipping calculated at checkout.

Get it between -

Cooler Master MWE Bronze 750 Watt V3 ATX 3.1 SMPS features a quiet HDB fan for effective cooling and a high temperature resilience of up to 40Β°C. This Power Supply is ideal for 40 series Graphics Card.
Features:

ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty

Specification:

Model Β  Β MWE Bronze 750 V3
Item Code Β  Β MPE-7501-ACABW-3BIN
ATX Version Β  Β ATX 12V Ver. 3.1
PFC Β  Β Active PFC
Input Voltage Β  Β 100 - 240V
Input Current Β  Β 10 - 6A
Input Frequency Β  Β 50 - 60Hz
Dimensions (L x W x H) Β  Β 140 x 150 x 86mm
Fan Size Β  Β 120 mm
Fan Bearing Β  Β HDB
Efficiency Β  Β β‰₯ 85% @ Typical Load
80 PLUS Rating Β  Β 80 PLUS Bronze
ErP 2014 Lot 3 Β  Β Yes
Operating Temperature Β  Β 0 ~ 40Γ’β€žΖ’
Power Good Signal Β  Β 100 - 150ms
Hold Up Time Β  Β β‰₯ 16ms
MTBF Β  Β >100,000 hours @ 25Γ’β€žΖ’ ambient
Protections Β  Β UVP / OVP / OPP / OTP / SCP
Regulatory Β  Β cTUVus,TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,
RoHS2.0 / BIS, KC (based on region's request.)
Connectors
ATX 24 Pin Β  Β x1 = 1x (500mm)
EPS 8Pin / 4+4 Pin Β  Β x2 = 1x (550+120mm)
SATA Β  Β x6 = 2x (400+150+150mm)
Peripheral 4 Pin Β  Β x3 = 1x (400+150+150mm)
PCI-e 6+2 Pin Β  Β x4 = 2x (500+120mm)
Warranty Β  Β 5 years
