Brand: Cooler Master

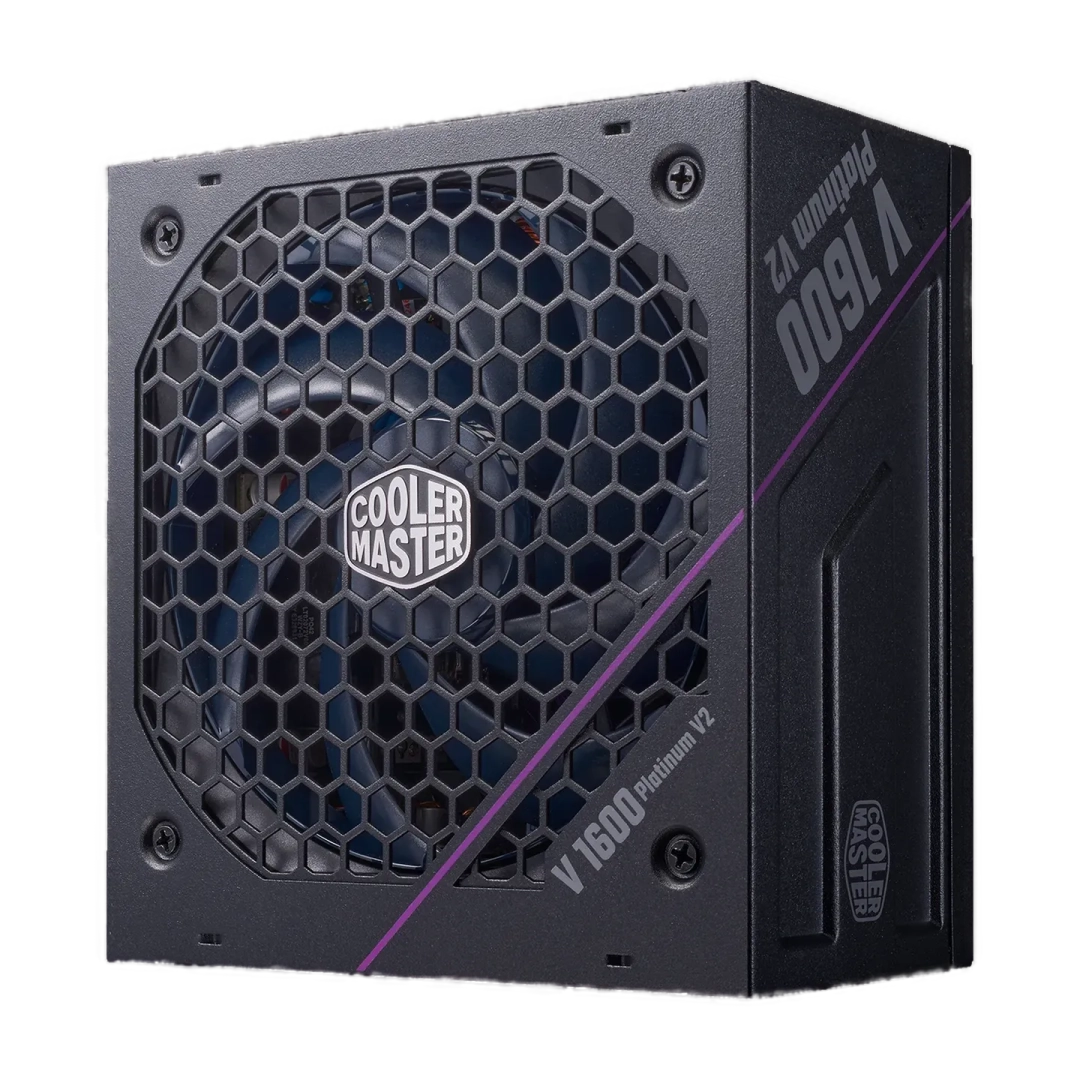

Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular SMPS

Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular SMPS

SKU : MPZ-G002-AFAP-BIN

Regular price β‚Ή 38,960.00
Regular price β‚Ή 56,199.00 Sale price β‚Ή 38,960.00
-30% OFF Sold out
Taxes included. Shipping calculated at checkout.

Ships: Within 3 to 4 days Post Order

Delivery : Express 3-5 Days!   Standard 5-9 Days!

Get it between -

Choose Quantity
High in Demand

V Platinum 1600 V2 Fully Modular PSU offers ultra-quiet performance with its Mobius fan and 80 Plus Platinum efficiency. It can support dual 40 series GPUs. It includes ATX 3.1 support and 90-degree 12V-2x6 cables.
Features:

Dual 40 series​ GPU support
ATX 3.1 support & two durable 90Β° 12V-2x6 cables
Advanced heat dissipation
Ultra-quiet Mobius fan
80 Plus Platinum certification
12-year warranty

Specification:

Model Β  Β V Platinum 1600 V2
Item Code Β  Β MPZ-G002-AFAP-BIN
ATX Version Β  Β ATX 12V Ver. 3.1
PFC Β  Β Active PFC
Input Voltage Β  Β 100 - 240V
Input Current Β  Β 16 - 8A
Input Frequency Β  Β 50 - 60Hz
Dimensions (L x W x H) Β  Β 160 x 150 x 86mm
Fan Size Β  Β 135 mm
Fan Bearing Β  Β LDB (Mobius FAN)
Fan Speed Β  Β 2400Β±10% rpm
Efficiency Β  Β β‰₯ 92% @ Typical Load
80 PLUS Rating Β  Β 80 PLUS Platinum
ErP 2014 Lot 3 Β  Β Yes
Operating Temperature Β  Β 0 ~ 50℃
Power Good Signal Β  Β 100 - 150ms
Hold Up Time Β  Β β‰₯ 16ms
MTBF Β  Β >100,000 hours
Protections Β  Β OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush
Protection
Regulatory Β  Β cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA,
RoHS2.0 / BIS, KC (based on region's request.)
ConnectorsΒ
ATX 24 Pin Β  Β x1 = 1x (650mm)
EPS 4+4 Pin Β  Β x1 = 1x (650mm)
EPS 8 Pin Β  Β x1 = 1x (650mm)
SATA Β  Β x16 = 4x (500+120+120+120mm)
Peripheral 4 Pin Β  Β x4 = 1x (500+120+120+120mm)
PCI-e 6+2 Pin Β  Β x5 = 5x (550mm)
12V-2x6 Β  Β x2 = 2x (650mm)
Warranty Β  Β 12 years
