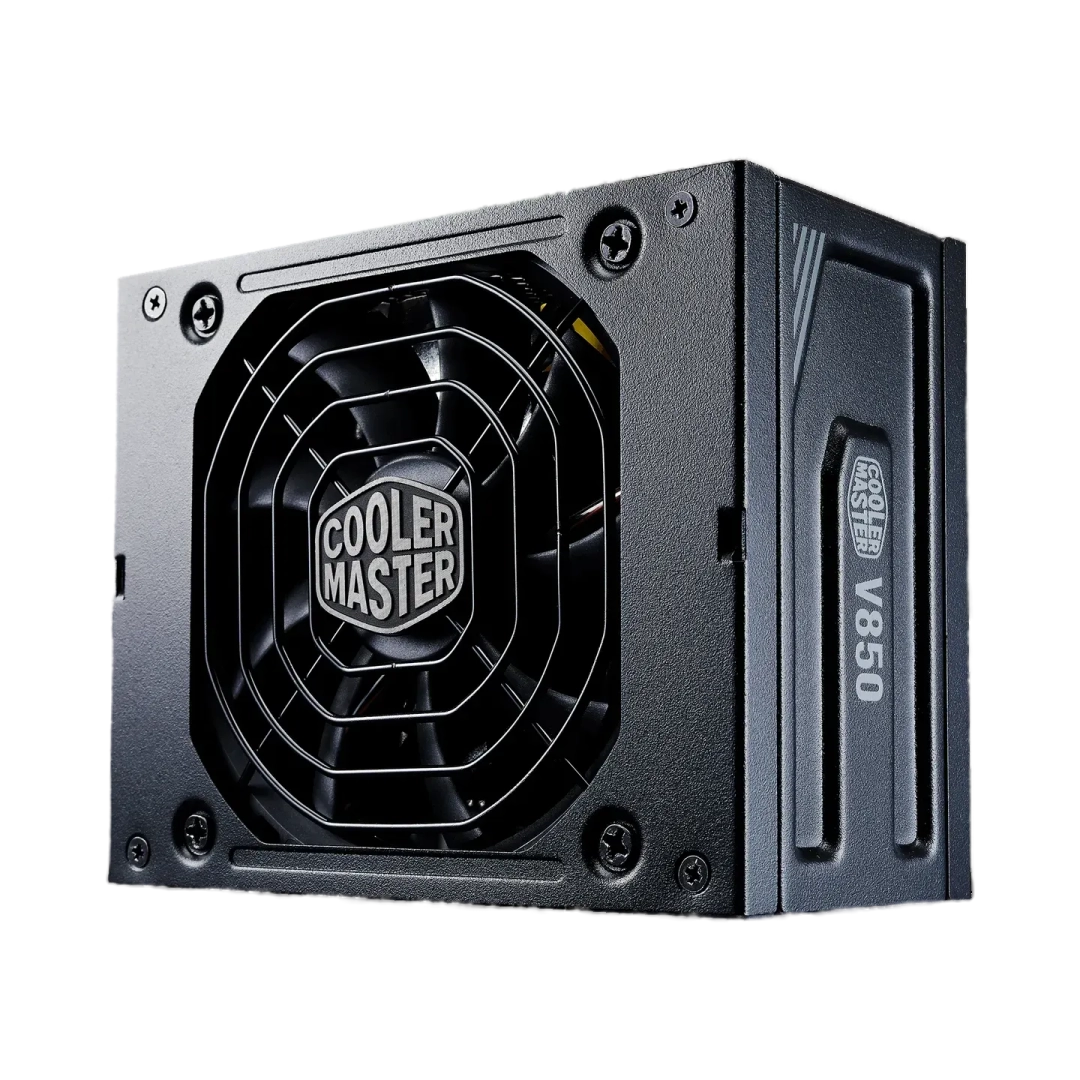

Cooler Master V850 SFX Gold 80 Plus Gold SMPS

Features:

80 Plus Gold Efficiency
SFX Form Factor
SFX-to-ATX Bracket
80 Plus Gold Certified
Full-modular Cabling
10 Year Warranty
Make it Mini

The V SFX Gold is Cooler Master’s debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders that want a full black build. This unit delivers top-shelf performance in 750 and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular black cables, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.

Specification:

Model    MPY-8501-SFHAGV-IN
ATX Version    SFX 12V Ver. 3.42
PFC    Active PFC
Input Voltage    100-240V
Input Current    12-6A
Input Frequency    50-60Hz
Dimensions (L x W x H)    100 x 125 x 63.5 mm
Fan Size    92mm
Fan Bearing    FDB
Efficiency    90% @ Typical Load
80 PLUS Rating    80 PLUS Gold
ErP 2014 Lot 3    Yes
Operating Temperature    0-50°C
Power Good Signal    100 - 500 ms
Hold Up Time    16ms
MTBF    >100,000 Hours
Protections    OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory    TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
ATX 24-Pin Connectors    1
EPS 4+4 Pin Connectors    1
EPS 8 Pin Connector    1
SATA Connectors    8
Peripheral 4-Pin Connectors    4
PCI-e 6+2 Pin Connectors    4
Series    V Gold Series, V SFX Gold Series
80 Plus    Gold
Modular    Full Modular
Wattage    Above 750W
Warranty    10 Years
