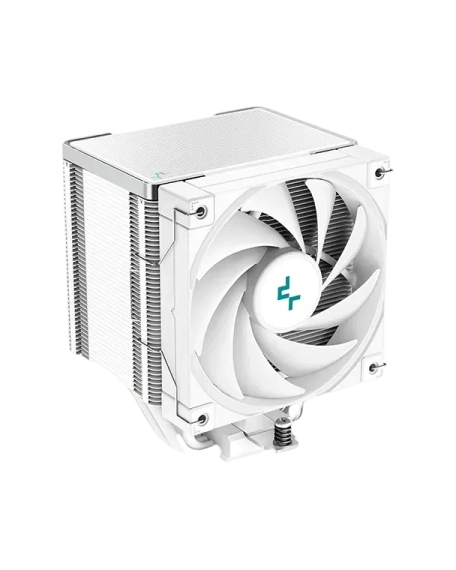

Deepcool AK500 White 120mm CPU Air Cooler

DeepCool AK500 WH is a high-performance single tower CPU cooler with 120mm FDB fan, Fluid Dynamic Bearing, five advanced heat pipes and it is compatible for both LGA1700 and AM5 Socket
Features:

The DeepCool AK500 WH is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.

Prime Performance
Keep up with massive performance gains thanks to dominant cooling capacity from the AK500 WH boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.

Balanced Bidirectional Heat Pipe Technology

By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.
This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.

Full DRAM Compatibility
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.

Cool, Quiet, and Powerful
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.

Simple and Secure
The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Application For

Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD
AM5/AM4

Specifications:

Model Number     R-AK500-WHNNMT-G
Product Dimensions    127×117×158 mm
Heatsink Dimensions     127×90×158 mm
Net Weight    1040 g
Heatpipe     Ø6 mm×5 pcs
Fan Dimensions    120×120×25 mm
Fan Speed     500~1850 RPM±10%
Fan Airflow     68.99 CFM
Fan Air Pressure    2.19 mmAq
Fan Noise     ≤31.5 dB(A)
Fan Connector    4-pin PWM
Fan Speed (with LSP)    500~1550 RPM±10%
Fan Airflow (with LSP)    52.24 CFM
Fan Air Pressure (with LSP)    1.2 mmAq
Fan Noise (with LSP)    ≤25.9 dB(A)
Bearing Type    Fluid Dynamic Bearing
Fan Connector    4-pin PWM
Fan Rated Voltage    12 VDC
Fan Rated Current    0.12 A
Fan Power Consumption     1.44 W
Warranty    3 Years
