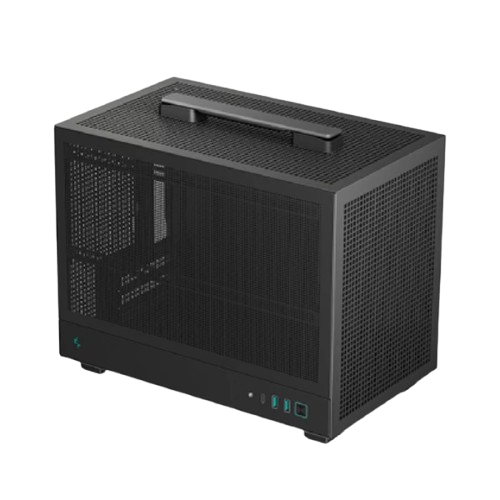

DeepCool CH160 Mesh M-ITX Mini Tower Case

DeepCool CH160 Mesh is a Small Form Factor Ultra-Portable High Airflow M-Itx Case. It Can support up to 172mm Height CPU Air Cooler, up to 305mm GPU Length, The Internal Layout Provides a Lot of Flexibility for Drives and PSU Options
Features:

The CH160 MESH is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The new mesh configuration allows option to now add in a 240mm AIO. The internal layout provides a lot of flexibility for drives and PSU options.

HIGH AIRFLOW PANELS

Mesh panels surround the CH160 MESH from numerous sides and create a high-airflow, small-form-factor case like no other.

FULL SIZED AIR COOLING!

Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 MESH can support giant air coolers up to 172mm in height!

SUPPORTS 240MM AIO!

The full mesh panel layout offers a new configuration support with a 240mm AIO.

NO ADDED GPU LATENCY!

Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

FLEXIBLE POWER OPTIONS

Whether you choose to go with ATX (140) / SFX, or SFX-L power supplies. GPU Length Limit: 230mm / 305mm

QUALITY OF LIFE IMPROVEMENTS

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 MESH makes everything a little easier.

Specification:

Model    CH160 MESH
P/N    R-CH160-BKNMI0-G-1
Product Dimensions    336×200×283.5mm(L×W×H)
Net Weight    3.1Kg
Materials    ABS+PVC+SPCC
Motherboard Support    Mini-ITX
Front I/O Ports    USB3.0×2、Audio×1、Gen2 Type-C×1
3.5" Drive Bays    1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays    1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots    3 Slots
Pre-Installed Fans    None
Fan Support
Front: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Top: 2×120mm
Side: 2×120mm
Rear: 1×120mm
Radiator Support    Side：240mm
CPU Cooler Height Limit    172mm
GPU Size Limit
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply Type    ATX PS2（maximum length: 140mm）/ SFX / SFX-L
Warranty    1 Year
