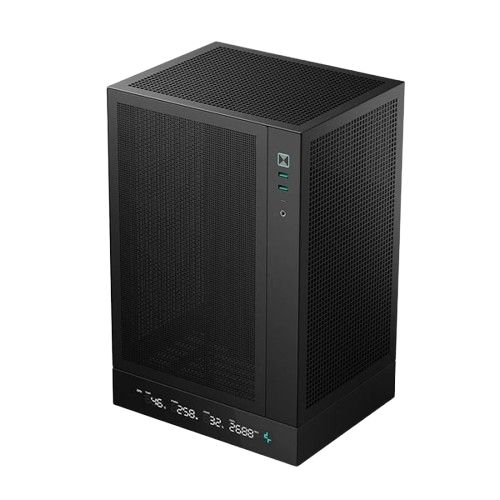

DeepCool CH170 Digital Black Mini Tower Case

Tiny Tower of Power, the DeepCool CH170 Digital Mini Tower Vertical Cabinet with surrounding mesh panels helps in high airflow. The Case is mini in size but the internal layer provides lots of flexibility for coolers and SMPS options.
Features:

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.

High Airflow Panels

Mesh Panels surround the CH170 Digital from every side and create a high-airflow, small-form-factor case like no other.

Multiple Data Point Display

The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.

Full Sized Air Cooling!

Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!

Or Go Liquid

If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.

No Added Gpu Latency!

Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

Flexible Power Options

Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.

Quality Of Life Improvements

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.

Specification:

Model    CH170 DIGITAL
P/N    R-CH170-BKNPI0D-G-1
Product Dimensions    380x200x250mm(L×W×H)
Net Weight    3.4Kg
Materials    ABS+SPCC
Motherboard Support    Mini-ITX
Front I/O Ports    USB3.0×2、Audio×1、Gen2 TypeC×1
3.5" Drive Bays    1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays    1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots    3 Slots
Pre-Installed Fans    None
Fan Support
Top:1×120 mm
Front: NA
Rear: 2×120 mm
Bottom:1×120 mm
Side : 2×120 mm
Radiator Support    Side : 240mm
CPU Cooler Height Limit    172mm
GPU Size Limit
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply Type    ATX PS2（maximum length: 140mm）/ SFX / SFX-L
Warranty    1 Year
