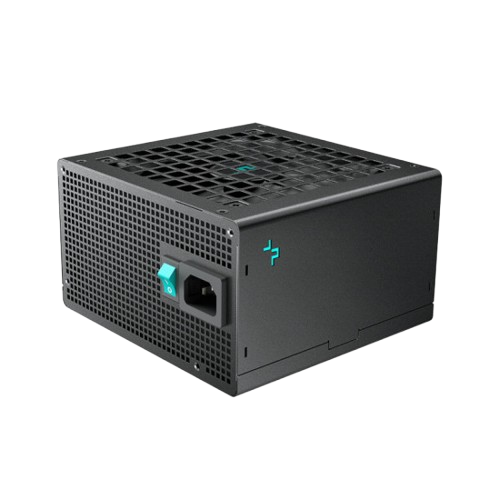

DeepCool PL650D ATX 3.0 650 Watt 80 Plus Bronze SMPS

DeepCool PL650D SMPS Comes with INTEL's ATX3.0 standard, 80 PLUS Bronze verification and 120mm hydro-bearing fan for optimal cooling performance. It is best for mid-range desktop systems used for your every day’s computing tasks.
Features:

The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

NATIVE ATX3.0

Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.

PREMIUM ELECTROLYTIC CAPACITORS

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE

Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE

Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND

Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

Specification

Model    PL650D
P/N    R-PL650D-FC0B-IN-V2
Power Connector    Main Power Connector (20+4)Pin x 1 (x1)
CPU Pin    CPU(4+4)Pin x 2 (x1)
PCI-E Pin    PCI-E(6+2)Pin x 1 (x1)
PCI-E Pin    PCI-E(6+2)Pin x 2 (x1)
Cable    12VHPWR(16Pin) x 1 (x1)
Sata Pin    SATA x 3 + 4Pin Peripheral x 1 (x2)
Type    ATX12V V3.0
Product Dimensions    150×140×86mm (W x L x H)
Efficiency certification    80Plus Bronze
Fan Size    120mm
Fan Bearing    HYB(Hydro Bearing)
Topology    Active PFC+DC to DC
Capacitors    Chinese Electrolytic Capacitors
Power Good Signal    100-150ms
Hold Up Time    ≥16ms
Efficiency    ≥85% Under Typical Load(50% Loading)
Protection    OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature    0 - 40℃
Regulatory    CE/FCC/CCC/RCM/EAC/
CAN ICES-003(B)/NMB-003(B) /TUV-RH
MTBF    100,000 Hours
Warranty    5 Years
