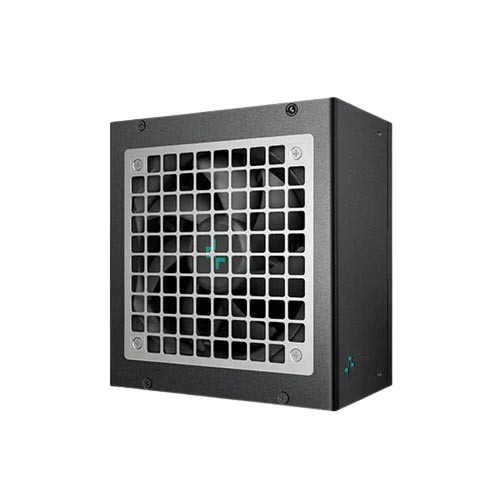

DeepCool PX1000P 1000 Watt 80 Plus Platinum ATX 3.0 SMPS

DeepCool PX1000P is a latest 1000 watt PSU that meets the latest Intel ATX 3.0 standard. Including 80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency and level of protection with OPP, OVP, SCP, OTP, OCP, NLO, and SIP
Features:

The DeepCool PX1000P is a newly designed power supply that meets the latest Intel ATX 3.0 standard. With a dedicated 12V-2x6, 2 EPS, and 5 PCI-e ports, the PX1000P provides stable power for a wide range of modern high-power components.

PAST, PRESENT, AND FUTURE

With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The PX1000P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

PRISTINE PLATINUM

80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency under typical loads.

PREMIUM QUALITY AT ITS FINEST

Solid and reliable power is provided through the use of all Japanese Electrolytic 105C capacitors and a dual main capacitor topology. Due to the high quality of the PSU build, the PX1000P will operate at altitudes up to 5000 meters above sea level.

RELIABLY STABLE

Through the use of a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology, the PX1000P can keep the hold-up time to ≥ 16 ms under full load.

PCI-E 5.1 POWER PERFECTED

Equipped with a high-grade 105C-resistant copper-core PCI-e Gen 5.1 12V-2x6 cable, the PX-P provides up to 600W for power-hungry GPUs.

PEACE OF MIND

The PX1000P includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

STATIC TO DYNAMIC

The PX1000P comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

MAXIMUM COVERAGE

The PX-P is engineered and manufactured at such a high level that DeepCool is offering a lengthy 12 years of trouble-free limited warranty coverage.

Specifications:

 Model Number     R-PXA00P-FC0B-IN
 Type     ATX12V V3.0
 Product Dimensions     150×160×86mm (W x L x H)
 Efficiency certification     80Plus Platinum/Cybenetics_Platinum
 Fan Size     120mm
 Fan Bearing      FDB (Fluid Dynamic Bearing)
 Topology      Interleaved PFC, Full-Bridge & LLC + DC to DC
 Capacitors      Full Japan Electrolytic Capacitors
 Power Good Signal      100-150ms
 Hold Up Time      ≥16ms
 Efficiency      ≥92% Under Typical Load(50% Loading)
 Protection      OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP
 Operation Temperature      0 - 50℃
 Regulatory      CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/;
 Erp Regulation       ErP 2014
 Environment Protection      WEEE/中国 RoHS/Triman/P65
 MTBF      100,000 Hours
 Warranty     12 Years
