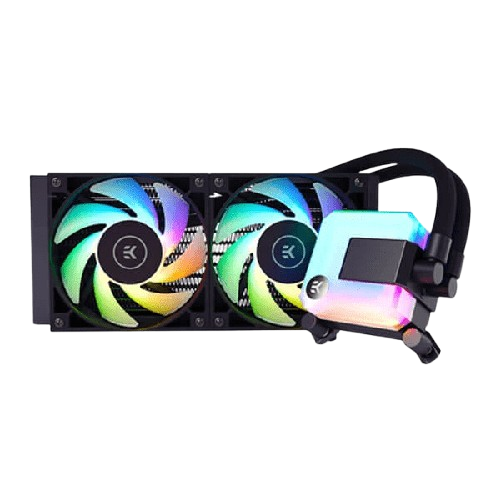

EK AIO 240 D-RGB CPU Liquid Cooler

Features
The EK-AIO 240 D-RGB is an all-in-one liquid cooling solution for your CPU. It offers all the benefits of a water-cooling solution in a compact, easy to install and maintenance-free design. The EK AIO comes with a universally compatible CPU water-block, along with a pre-filled pump-res combo design for a liquid cooling solution that’s ready to go straight out of the box. It’s simple, efficient and comes with fully customizable D-RGB lighting.

Specification:
Technical Specifications
Radiator Dimensions: 275 x 120 x 27 mm
Radiator Material: Aluminum
Fan Compatibility: 120 mm
Pump Unit Dimensions: 88 x 70 x 53 mm
Pump Unit Material: ABS Housing, Copper Cold plate, Steel Mounting Pump
Pump Speed Range: 850 - 2600 RPM ± 10%
Pump PWM Range: 20 - 100%
Pump Cable Length: 50 mm
Pump Unit RGB Type: 5V Digital (Addressable)
Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm
Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
Tubing Length: 350 mm
Fan Dimensions: 120 x 120 x 25mm
Fan Speed Range: 550 - 2200 ± 10%
Fan Noise Level: 36,4dBA (at maximum speed)
Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
Fan Air Flow: 66,04 CFM = 112,20 m³/h (at maximum speed)
Fan Cable Length: 500 mm
Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground
Fan RGB Cable Length: 50 mm
System Requirements:
4-Pin PWM Header for pump and fan operation
3-Pin Addressable 5V D-RGB header
Enclosed:
EK-AIO 240 unit
EK-Vardar S 120ER D-RGB (2pc)
Tube of Thermal Paste
Mounting Kit
User Manual
Mounting kit:
Zip Bag 1:

8x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
8x Phillips Head Screw UNC 6-32 x 6mm
8x Phillips Head Screw UNC 6-32 x 34mm
Zip Bag 2:

4x Thumb nut (Intel /AMD)
4x Mounting thumb screw for INTEL LGA 115x / AMD AM4 socket
4x Mounting thumb screw for Intel LGA 20XX socket
4x Spring
4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets)
Zip Bag 3:

1x Intel LGA 115x Backplate
2x Intel mounting bracket
2x AMD mounting bracket
CPU Socket Support:
Intel Sockets LGA: 1700, 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066
AMD Sockets: AM4
Warranty    5 Years
