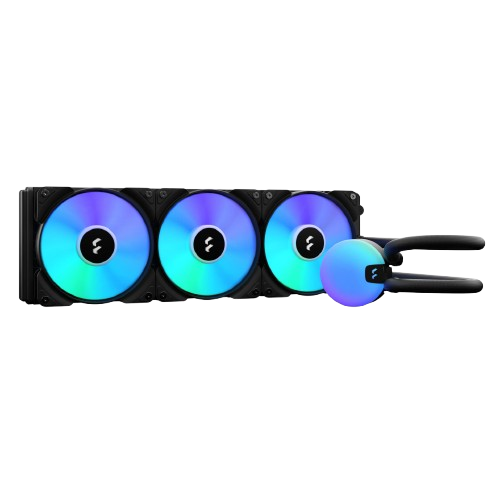

Fractal Design Lumen S36 RGB V2 is a 360mm CPU Liquid Cooler which is coming with black color design and Compatible with LGA 1700 and AM5 sockets. Features: • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI • Six ARGB LEDs are yours to command via your motherboard or controller • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation • Compatible with LGA 1700 and AM5
Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike
The right way up
The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation Low-permeability rubber tubes with braided nylon sleeves From subtle to stunning
Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI Six ARGB LEDs are yours to command via your motherboard or controller Common denominators
Compatible with LGA 1700 and AM5 Supports the most common sockets for both Intel and AMD Specifications:
Model Number FD-W-L1-S3612 Sockets supported (Intel) LGA1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 Sockets supported (AMD) AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 Cold plate material Copper Thermal paste Pre-applied Tube length 400mm Tube material Low-permeability rubber with braided nylon sleeve Fittings, block side Articulating 90-degree Elbow Fittings, radiator side Barbed fitting Block height 43mm Block measurements (with fittings) 79 x 67 mm Block diameter (main block body) 67 mm Fan specifications Fan type Aspect 12 RGB PWM Rotational speed 500–2000 RPM Fan bearing Rifle bearings Fan PWM control Yes Fan acoustical noise <10–33.2 dBA Fan maximum air flow 13-56 CFM Fan maximum static pressure 0.230–2.34 mm H2O Fan input voltage 12V Fan maximum input current 0.37A Fan MTTF 90,000 hours Pump specifications Rotational speed 4000 ± 10% RPM Bearing type Ceramic PWM control No Acoustical noise (full speed) 22 dBA Maximum pressure 1.8 mm H2O/ 17.6 kPa / 2.5 PSI Input voltage 12V DC Input current (without fans) 0.34 A MTTF 50 000 hours Radiator specifications Radiator dimensions 392 x 120 x 27 mm Radiator fin material Aluminum Radiator housing material Aluminum Radiator fan screw threads 6-32 Package contents CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable Warranty 5 Years
