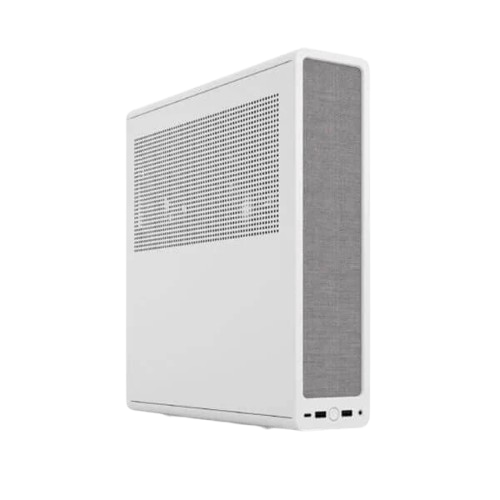

Fractal Design Ridge PCIe 4.0 (M-ITX) Mini Tower Cabinet (White)
Fractal Design Ridge PCIe 4.0 (M-ITX) Mini Tower Cabinet (White)
SKU : FD-C-RID1N-12
Get it between -
Fractal Design Ridge is small form factor case designed to use in workspace or entertainment purpose. It supports GPUs up to a length of 335 mm and comes with 2x 140 mm PWM Aspect fans pre-installed.
Features:
• Supports GPUs up to a length of 335 mm
• All panels are removable, enabling maximum accessibility
• Available with either PCIe 4.0 or PCIe 3.0 riser card
An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Inch-perfect efficiency
Meticulously engineered to maximize its capability while minimizing its footprint
Small form factor case with a volume of 12.6 liters
Supports GPUs up to a length of 335 mm
Horizontal or vertical
Multiple feet configurations allow for both horizontal and vertical orientation
Elevate any gaming desk, workspace or entertainment area
All-around ventilation
Ventilated on all sides to maximize its cooling potential
Comes with 2x 140 mm PWM Aspect fans pre-installed
Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design
Stylish fabric front with CNC machined aluminum frame
Features a Power LED bar in front
Type-C interface
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
Smart configurations
Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
Four 2.5” drive mounts included
Specifications:
Model Number FD-C-RID1N-12
Dedicated 2.5" drive mounts 4x included, 4x positions total
Expansion slots 3-slot
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts 2x 120/140 mm and 3x 80 mm
Side fan 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan 3x 80 mm (not included)
Cable routing space 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock Side panels
Captive thumbscrews Side panels
Left side panel Steel
Right side panel Steel
Compatibility
Motherboard compatibility Mini ITX
Power supply type SFX, SFX-L
Side radiator 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length SFX-L
GPU max length 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height 70 mm
Dimensions
Case dimensions Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
Case dimensions w/o feet/protrusions/screws 355 x 95 x 375 mm
Net weight 4.3 kg
Package dimensions (LxWxH) 426 x 167 x 431 mm
Gross weight 5.5 kg
Volume 12.6 liter
Warranty 2 Years
