Brand: Gamdias

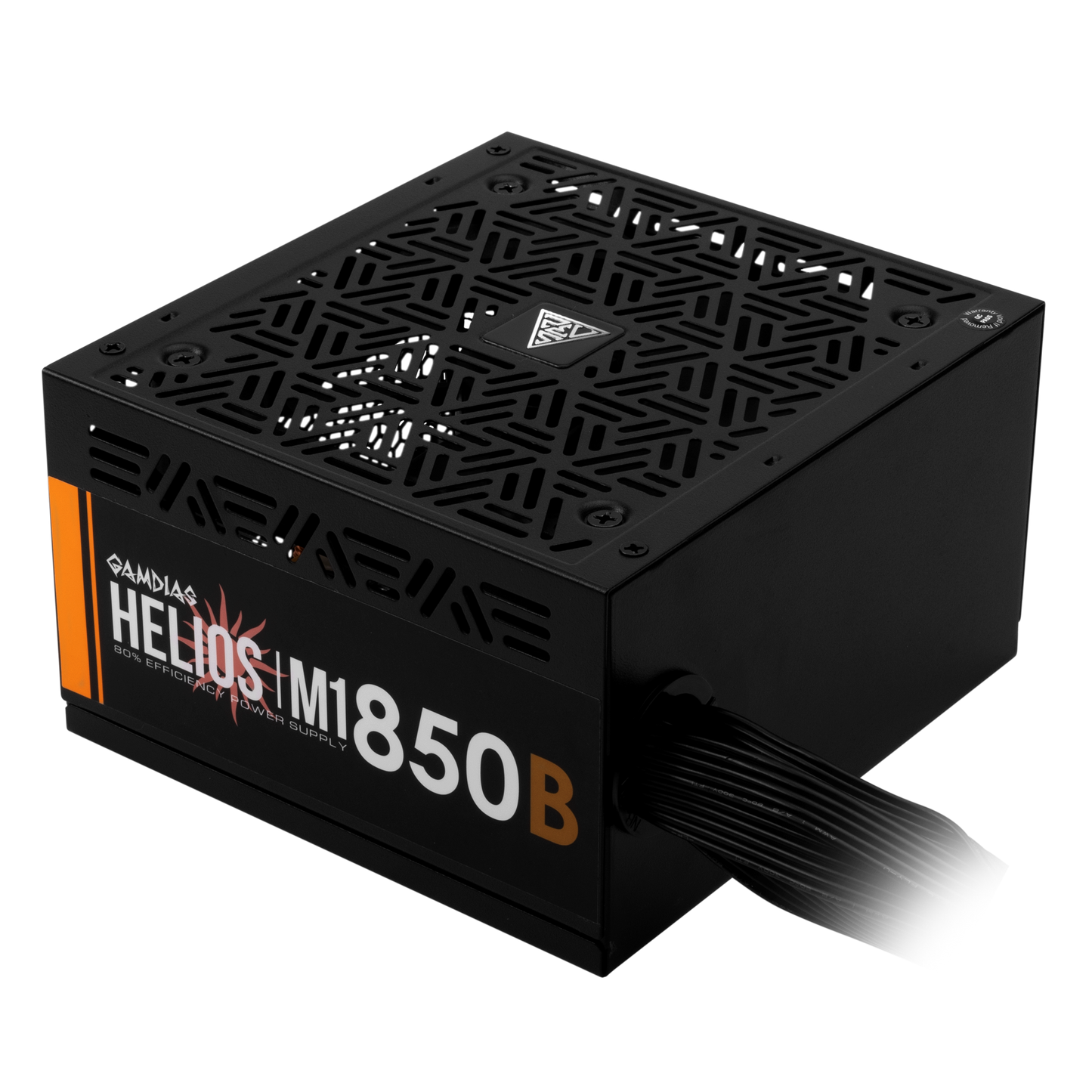

Gamdias Helios M1-850B 850Watt 80 Plus Bronze SMPS

Gamdias Helios M1-850B 850Watt 80 Plus Bronze SMPS

SKU : HELIOS-M1-850B

Regular price β‚Ή 5,830.00
Regular price β‚Ή 19,999.00 Sale price β‚Ή 5,830.00
-70% OFF Sold out
Taxes included. Shipping calculated at checkout.

Ships: Within 3 to 4 days Post Order

Delivery : Express 3-5 Days!   Standard 5-9 Days!

Get it between -

The Helios m1-850b is a stealthy, high-quality, smart, reliable and bronze certified power supply unit with 85% efficiency. It also supports automatic fan speed optimization with AC input and DC output. Total Power Output of 850 Watt
Features:

Meets 80 PLUS Bronze Efficiency
Black Flat Cables
Automatic Fan Speed Optimization
APFC with PF value of 0.99
Support C6/C7 Power States
Stealth Black
GAMDIAS HELIOS M1-850B

Smart and Reliable:

The HELIOS M1-850B is a high quality stealth fan that can deliver up to 85% efficiency while automatically adjusting its fan speed according to temperature. It also has a high build quality with its flat black cables and 80 PLUS bronze certification.

80 Plus Bronze Certified:

Efficiency rating reflects how much power is retained on transfer, not build quality. HELIOS M1-850B, with an 80 PLUS Bronze efficiency rating, is a safe and lasting first-rate power supply unit.

Smart Ventilation:

The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.

Flat Black Cables:

The stealthy and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.

Β Specifications:

Model: Β  Β HELIOS M1-850B
Efficiency: Β  Β Meet 80 PLUS Bronze efficiency
Type: Β  Β ATX12V v2.4
Power Factor Correction: Β  Β APFC with PF value of 0.99
Support MB Sync: Β  Β No
Dimension (L x W x H): Β  Β 140 x 150 x 86 mm
Support C6/C7 power state: Β  Β Yes
AC Input: Β  Β 100-240V / 5.5-11A / 47-63Hz
DC Output: Β  Β +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current: Β  Β 20A / 20A / 70A / 0.3A / 2.5A
Max. Output Power: Β  Β 130W / 840W / 3.6W / 12.5W
Total Power: Β  Β 850 Watt
Protection: Β  Β OVP / UVP / OPP / OCP / SCP / SP / ICP
Main Power: Β  Β 1 (20+4 Pin)
CPU: Β  Β 2 (4+4 Pin)
PCI-E: Β  Β 4 (6+2 Pin)
SATA: Β  Β 6 (5 Pin)
Molex: Β  Β 4 (4 Pin)
Modular: Β  Β Non Modular
Flat Cable: Β  Β Yes
Silent Mode: Β  Β No
DC to DC: Β  Β Yes
Warranty Β  Β 3 Years
