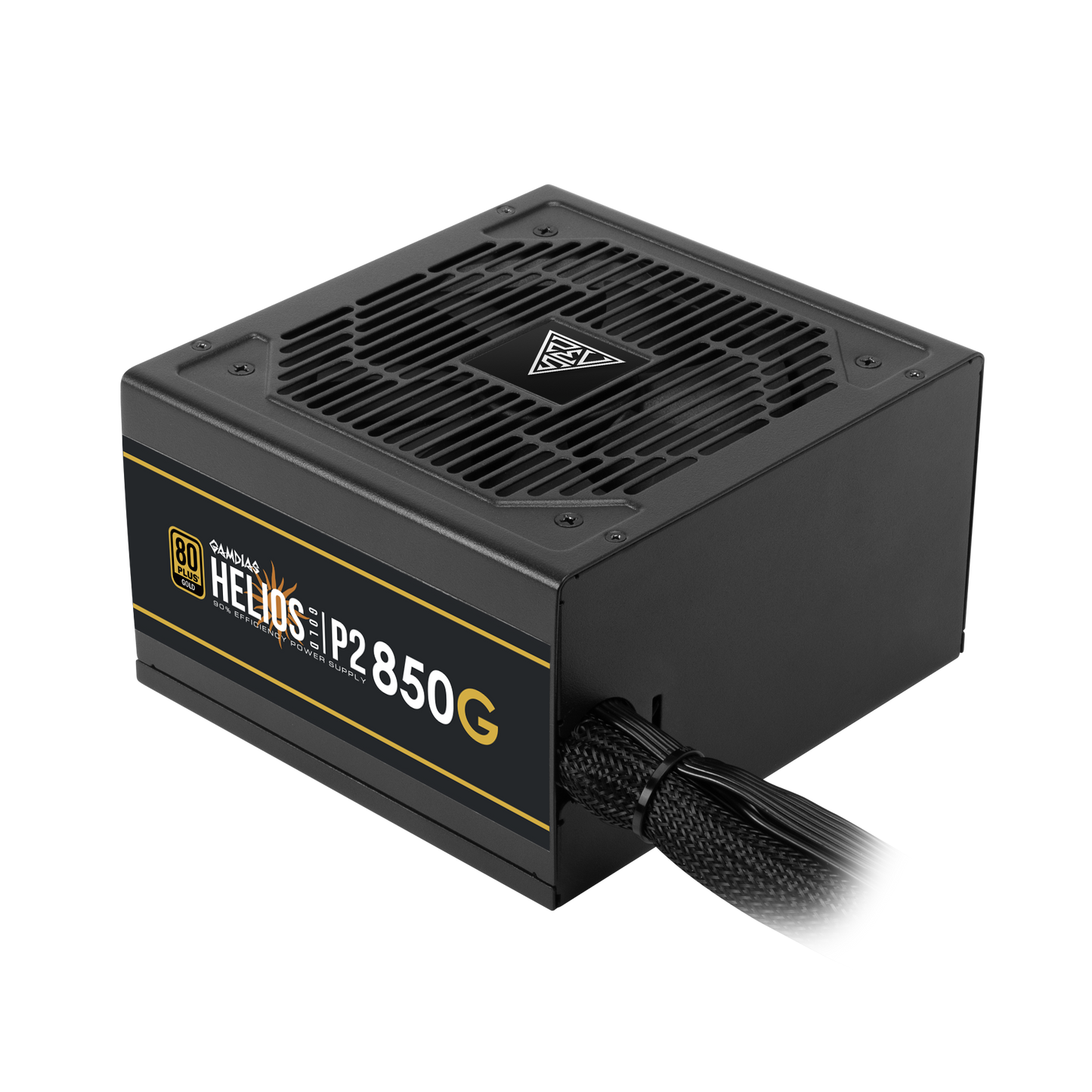

Gamdias Helios P2-850G 850 Watt 80 Plus Gold ATX 3.0 SMPS

HELIOS P2-850G power supply delivers consistent efficient power with certification of 80 Plus Gold, fully supporting ATX 3.0 and PCIe Gen 5.0 to power up next-gen graphic cards and top-notch PC components
Features:

HELIOS P2-850G

THE RELIABLE POWERHOUSE

850W 80 Plus Gold
ATX 3.0 & PCIe Gen 5.0 Ready
120mm Hydraulic Bearing Fan
Native 12VHPWR Cable
Full DC-DC, LLC Resonant Circuit Design
Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
THE RELIABLE POWERHOUSE

The new HELIOS P2-850G power supply delivers consistent efficient power with certification of 80 Plus Gold, fully supporting ATX 3.0 and PCIe Gen 5.0 to power up next-gen graphic cards and top-notch PC components. Equipped with high-quality capacitors and a hydraulic bearing fan with a silent mode, the PSU maintains silent operations while outputting constant reliable performances.

80 PLUS GOLD CERTIFIED

Designed to meet 80 PLUS Gold level, providing stable power output up to 92% efficiency at 50% load reducing carbon footprint and power consumption.

ATX 3.0 & PCIe GEN 5.0 READY

HELIOS P2 P2-850G is designed to address ATX 3.0 standards and PCIe Gen 5.0 connector compatibility while offering up to 200% total power excursion. The HELIOS P2 Series can hold up to triple the GPU power excursion and twice the total power excursion.

NATIVE 12VHPWR CABLE

The native 16 PIN (12VHPWR) PCIe connector can deliver up to 450W for PCIe 5.0 graphics cards, providing powerful and stable performance and allowing the PSU to natively run next-generation GPUs.

SILENT OPERATION

Featuring a premium 120mm hydraulic fan can provide excellent thermals, silent acoustics, and high reliability to ensure longevity at near-silent operation. Furthermore, the smart fan will adjust the fan speed and minimizes undesired noise.

STABLE +12V OUTPUT

Made with premium DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.

HEAVY-DUTY PROTECTION

This PSU offers complete protection, meeting full demands to help the system operate safely and stably.

OCP-Over Current Protection
OTP-Over Temperature Protection
OVP-over Temperature Protection
OPP-Over Power Protection
 UVP-Under Voltage Protection
SCP-Short Circuit Protection
EXTENSIVE GPU SUPPORT

The HELIOS P2 is designed to support new NVIDIA and AMD graphics cards with increased power demands and different connectors, with additional support to a 12+4-pin VGA power connector (12VHPWR) and up to four 6+2-pin VGA power connectors.

Motherboard Connector-1 x 24-pin
CPU EPS-2 x 4+4-pin
12VHPWR-1 x 12+4-pin
SATA-6 x 5-pin
Modex-3 x 4 pin
GPU PCI-E-4 x 6+2-pin
Specification:

Model    HELIOS P2-850G
POWER
Type    ATX12V v3.0
Efficiency    Meet 80 PLUS Gold efficiency
Power Factor Correction    APFC with PF value of 0.99
Support MB Sync    No
Dimension (L x W x H)    140 x 150 x 86 mm
Support C6/C7 power state    Yes
AC Input    100-240V~ / 12-6A / 50-60Hz
DC Output    +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current    20A / 20A / 70.8A / 0.3A / 3A
Max. Output Power    100W / 850W / 3.6W / 15W
Total Power    850W
Peak Power    1105W
Protection    OVP / UVP / OPP / SCP / OCP / OTP
Main Power    1 (24 Pin)
CPU    2 (4+4 Pin)
PCI-E    4 (6+2 Pin)
12VHPWR    1 (12+4 Pin)
SATA    6 (5 Pin)
Molex    3 (4 Pin)
Modular    Non Modular
Flat Cable    Yes
Cooling System    120mm hydraulic bearing fan
Silent Mode    No
DC to DC    Yes
Environmental Compliance    Erp Lot 6
Warranty    3 Years
