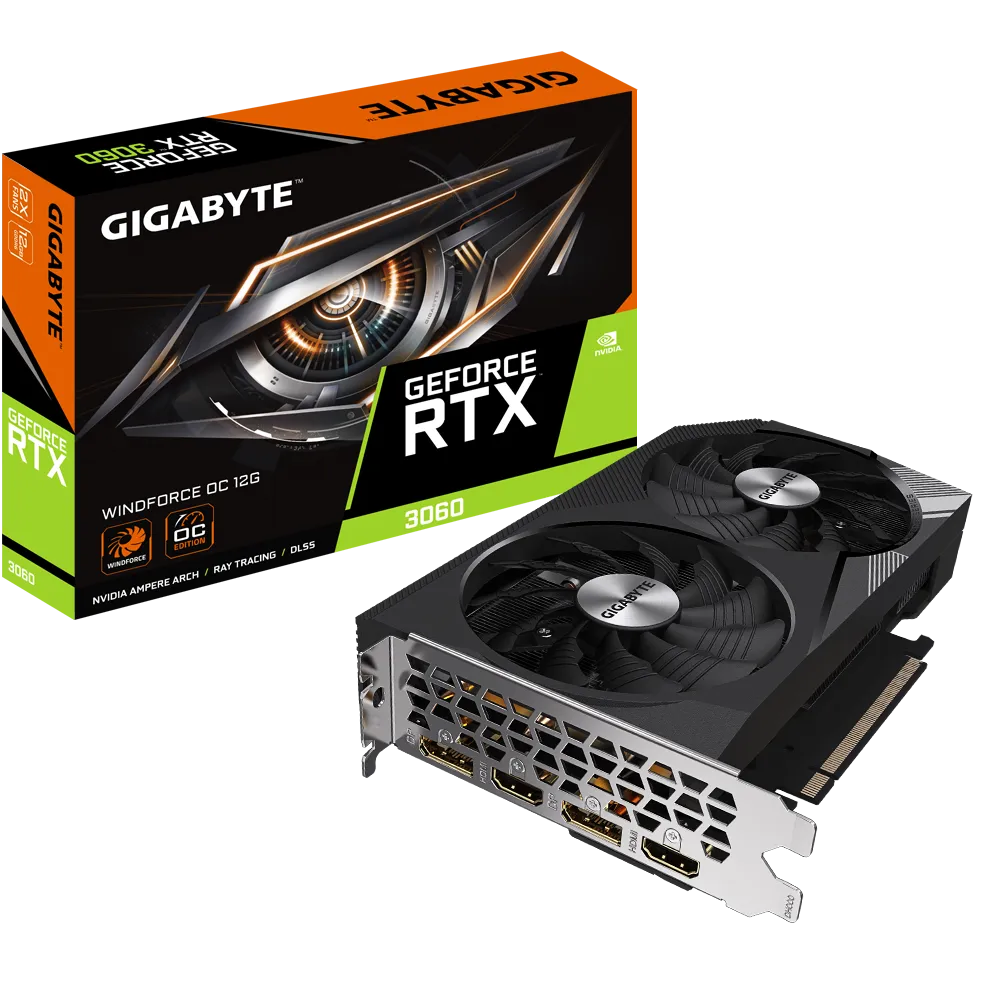

Gigabyte RTX 3060 Windforce OC 12GB Graphics Card GV-N3060WF2OC-12GD

Gigabyte RTX 3060 Windforce OC 12GB Graphics Card is an unique 3D active dual Fan GPU that has alternate spinning feature for better heat dissipation. The GPU’s Graphene nano lubricant can extend the life of fan by 2.1 times for better performance.

Features :

GeForce RTX™ 3060 WINDFORCE OC 12G

KEY FEATURE

    NVIDIA Ampere Streaming Multiprocessors

    2nd Generation RT Cores

    3rd Generation Tensor Cores

    Powered by GeForce RTX™ 3060

    Integrated with 12GB GDDR6 192-bit memory interface

    WINDFORCE 2X Cooling System with alternate spinning fans

    Screen cooling

    200 mm compact card size

    Limited Hash Rate version

WINDFORCE 2X COOLING SYSTEM

The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

    MODEL GV-N3060WF2OC-12GD
    CHIPSET Nvidia GeForce
    GPU RTX 3060
    PCI EXPRESS 4.0
    GPU BASE CLOCK 1792 MHz
    MEMORY CLOCK 15000 MHz
    MEMORY SIZE 12 GB
    MEMORY INTERFACE 192-BIT
    MEMORY TYPE GDDR6
    DIRECT X SUPPORT 12
    OPEN GL 4.6
    PORTS
        2x DisplayPort 1.4a
        2x HDMI 2.1
    RESOLUTION 7680x4320
    COOLER Dual Fan
    SOFTWARE Driver & Software
    PACKAGE CONTENTS Graphics Card, User Manual
    GPU CORE (CUDA CORE) 3584
    SLI SUPPORTED NA
    POWER CONNECTORS 1 x 8-pin
    WARRANTY 3 Years
