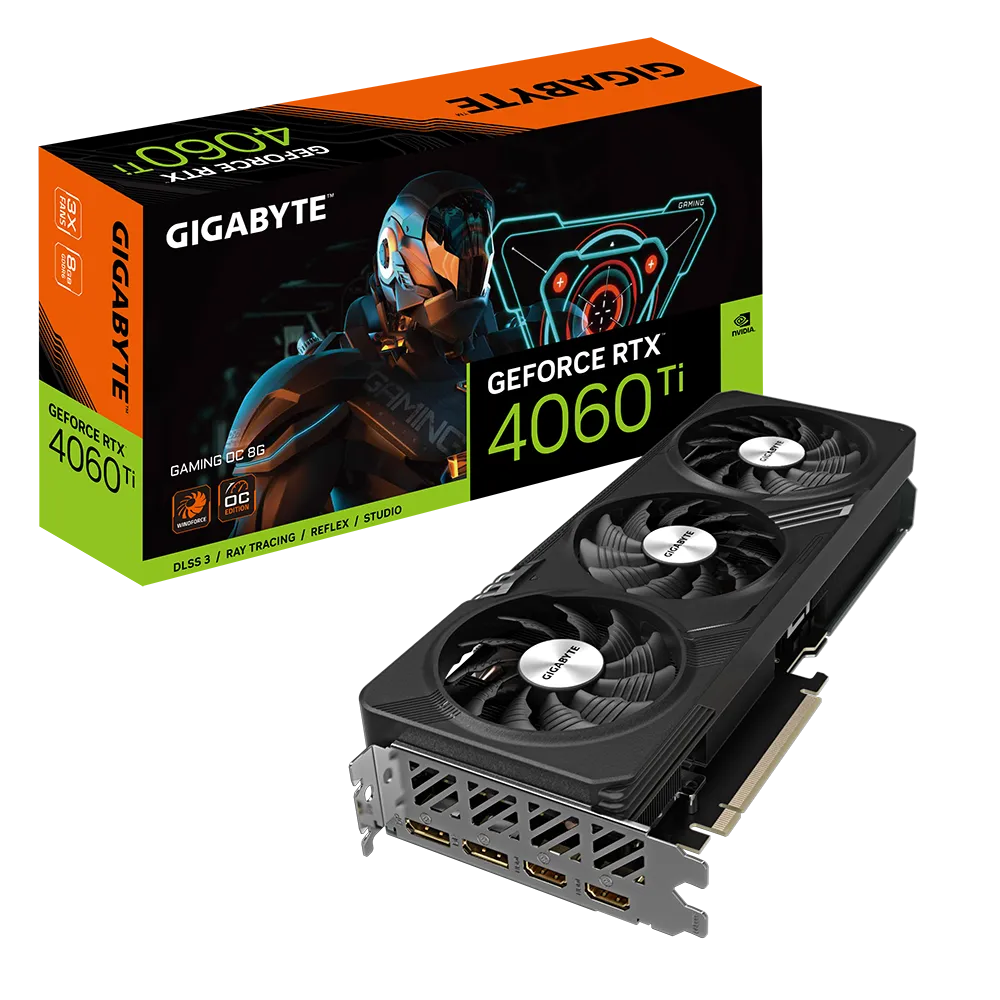

Gigabyte RTX 4060 Ti Gaming OC 8GB Graphics Card

Overview:

    Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
    4th Generation Tensor Cores: Up to 4x performance with DLSS
    3 vs. brute-force rendering
    3rd Generation RT Cores: Up to 2X ray tracing performance
    Powered by GeForce RTX™ 4060 Ti (8GB)
    Integrated with 8GB GDDR6 128bit memory interface
    WINDFORCE cooling system
    RGB Fusion
    Dual BIOS
    Protection metal back plate

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

    MODEL GV-N406TGAMING-OC-8GD
    CHIPSET NVIDIA GEFORCE
    GPU RTX 4060 Ti
    PCI EXPRESS 4.0
    GPU BASE CLOCK 2580 MHz
    MEMORY CLOCK 18 Gbps
    MEMORY SIZE 8 GB
    MEMORY INTERFACE 128-BIT
    MEMORY TYPE GDDR6
    DIRECT X SUPPORT 12 Ultimate
    OPEN GL 4.6
    PORTS
        DisplayPort 1.4a*2
        HDMI 2.1a*2
    RESOLUTION 7680 x 4320
    COOLER Triple-Fan
    SOFTWARE Driver And Software
    PACKAGE CONTENTS Graphics Card, User Manual
    GPU CORE (CUDA CORE) 4352
    POWER CONNECTORS 1 x 8-pin
    WARRANTY 4 Years
