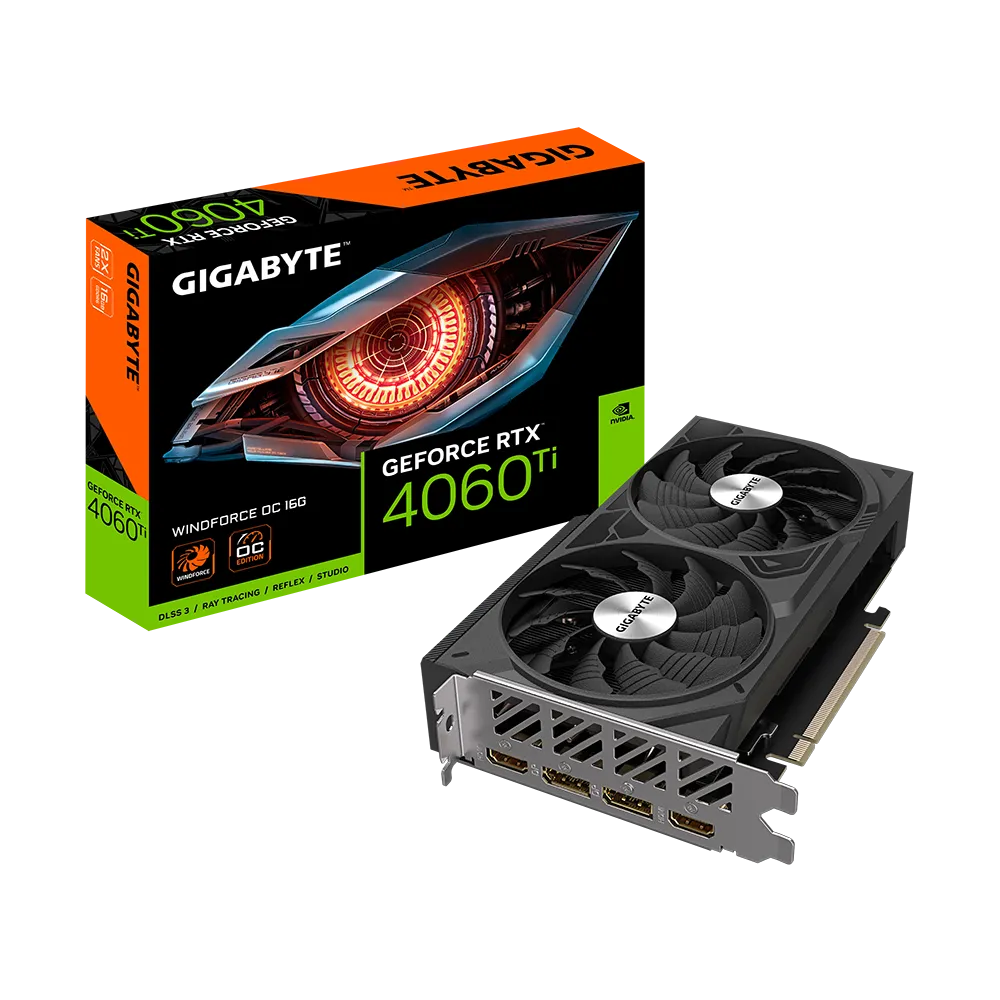

Gigabyte RTX 4060 Ti Windforce OC 16GB Graphics Card

Gigabyte GeForce RTX 4060 Ti Windforce OC is a 16GB memory Graphics Card which is powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing. Featuring two 90mm unique blade fans and 3D active fans and 12 Ultimate DirectX Support.

Features:

    Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
    4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
    3rd Generation RT Cores: Up to 2X ray tracing performance
    Powered by GeForce RTX™ 4060 Ti (16GB)
    Integrated with 16GB GDDR6 128bit memory interface
    WINDFORCE cooling system
    Protection metal back plate
    CORE CLOCK
    2565 MHz (Reference Card: 2535 MHz)

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

    MODEL GV-N406TWF2OC-16GD
    CHIPSET NVIDIA GEFORCE
    GPU RTX 4060 Ti
    PCI EXPRESS 4.0
    GPU BASE CLOCK 2565 MHz
    MEMORY CLOCK 18 Gbps
    MEMORY SIZE 16 GB
    MEMORY INTERFACE 128-BIT
    MEMORY TYPE GDDR6
    DIRECT X SUPPORT 12 Ultimate
    OPEN GL 4.6
    PORTS
        DisplayPort 1.4a*2
        HDMI 2.1a*2
    RESOLUTION 7680 x 4320
    COOLER Dual Fan
    SOFTWARE Driver And Software
    PACKAGE CONTENTS Graphics Card, User Manual
    GPU CORE (CUDA CORE) 4352
    POWER CONNECTORS 1 x 8-pin
    WARRANTY 3 Years
