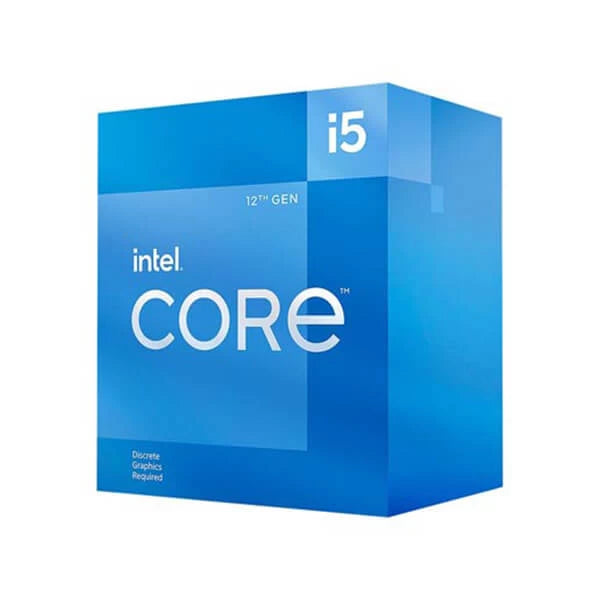

Intel Core i5-12400F Processor 18M Cache, up to 4.40 GHz - BX8071512400F

Intel Core i5-12400F 12th Gen Processor
4.40 GHz Max Turbo Frequency
6 Cores 12 Threads
Maximum Memory Size 128 GB
18 MB Intel Smart Cache

Introducing the latest generation Intel Core i5-12400F 12th Generation Desktop Processor that gives you the best user experience. It includes 6 CPU cores and 12 threads which gives you the opportunity to multitask and get your work done without any interruption. With the presence of Intel Turbo Boost Technology 2.0, one can experience the performance and power of processors with higher clock speeds.

Specifications:

Essentials
Product Collection    12th Generation Intel® Core™ i5 Processors
Code Name    Products formerly Alder Lake
Vertical Segment    Desktop
Processor Number    i5-12400F
Lithography    Intel 7
Use Conditions    PC/Client/Tablet
CPU Specifications
Total Cores    6
# of Performance-cores    6
# of Efficient-cores    0
Total Threads    12
Max Turbo Frequency    4.40 GHz
Performance-core Max Turbo Frequency    4.40 GHz
Performance-core Base Frequency    2.50 GHz
Cache    18 MB Intel® Smart Cache
Total L2 Cache    7.5 MB
Processor Base Power    65 W
Maximum Turbo Power    117 W
Memory Specifications
Max Memory Size (dependent on memory type)    128 GB
Memory Types
Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels    2
Max Memory Bandwidth    76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision    4.0
Max # of DMI Lanes    8
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes    20
Package Specifications
Sockets Supported    FCLGA1700
Max CPU Configuration    1
Thermal Solution Specification    PCG 2020C
TJUNCTION    100°C
Package Size    45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator    3.0
Intel® Thread Director    No
Intel® Deep Learning Boost (Intel® DL Boost)    Yes
Intel® Optane™ Memory Supported ‡    Yes
Intel® Speed Shift Technology    Yes
Intel® Turbo Boost Max Technology 3.0 ‡    No
Intel® Turbo Boost Technology ‡    2.0
Intel® Hyper-Threading Technology ‡    Yes
Intel® Virtualization Technology (VT-x) ‡    Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡    Yes
Intel® VT-x with Extended Page Tables (EPT) ‡    Yes
Intel® 64 ‡    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States    Yes
Enhanced Intel SpeedStep® Technology    Yes
Thermal Monitoring Technologies    Yes
Intel® Volume Management Device (VMD)    Yes
Security & Reliability
Intel® AES New Instructions    Yes
Secure Key    Yes
Intel® OS Guard    Yes
Execute Disable Bit ‡    Yes
Intel® Boot Guard    Yes
Mode-based Execute Control (MBEC)    Yes
Intel® Control-Flow Enforcement Technology    Yes
Warranty    3 Years
