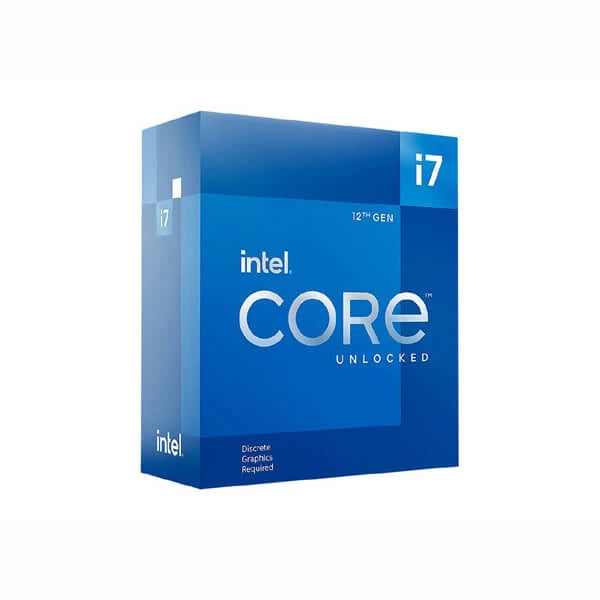

Intel Core i7-12700KF Processor 25M Cache, up to 5.00 GHz -BX8071512700KF

Specifications:

Essentials
Product Collection    12th Generation Intel® Core™ i7 Processors
Code Name    Products formerly Alder Lake
Vertical Segment    Desktop
Processor Number    i7-12700KF
Status    Launched
Lithography    Intel 7
Use Conditions    PC/Client/Tablet
CPU Specifications
Total Cores    12
# of Performance-cores    8
# of Efficient-cores    4
Total Threads    20
Max Turbo Frequency    5.00 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency    5.00 GHz
Performance-core Max Turbo Frequency    4.90 GHz
Efficient-core Max Turbo Frequency    3.80 GHz
Performance-core Base Frequency    3.60 GHz
Efficient-core Base Frequency    2.70 GHz
Cache    25 MB Intel® Smart Cache
Total L2 Cache    12 MB
Processor Base Power    125 W
Maximum Turbo Power    190 W
Supplemental Information
Embedded Options Available    No
Memory Specifications
Max Memory Size (dependent on memory type)    128 GB
Memory Types
Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels    2
Max Memory Bandwidth    76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision    4.0
Max # of DMI Lanes    8
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes    20
Package Specifications
Sockets Supported    FCLGA1700
Max CPU Configuration    1
Thermal Solution Specification    PCG 2020A
TJUNCTION    100°C
Package Size    45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator    3.0
Intel® Thread Director    Yes
Intel® Deep Learning Boost (Intel® DL Boost)    Yes
Intel® Optane™ Memory Supported    Yes
Intel® Speed Shift Technology    Yes
Intel® Turbo Boost Max Technology 3.0    Yes
Intel® Turbo Boost Technology    2.0
Intel® Hyper-Threading Technology    Yes
Intel® Virtualization Technology (VT-x)    Yes
Intel® Virtualization Technology for Directed I/O (VT-d)    Yes
Intel® VT-x with Extended Page Tables (EPT)    Yes
Intel® 64    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States    Yes
Enhanced Intel SpeedStep® Technology    Yes
Thermal Monitoring Technologies    Yes
Intel® Volume Management Device (VMD)    Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡     Yes
Intel® Control-Flow Enforcement Technology     Yes
Intel® AES New Instructions     Yes
Secure Key     Yes
 Intel® OS Guard     Yes
 Execute Disable Bit ‡      Yes
 Intel® Boot Guard     Yes
 Mode-based Execute Control (MBEC)     Yes
 Intel® Virtualization Technology (VT-x) ‡     Yes
 Intel® Virtualization Technology for Directed I/O (VT-d) ‡     Yes
 Intel® VT-x with Extended Page Tables (EPT) ‡     Yes
Warranty    3 Years
