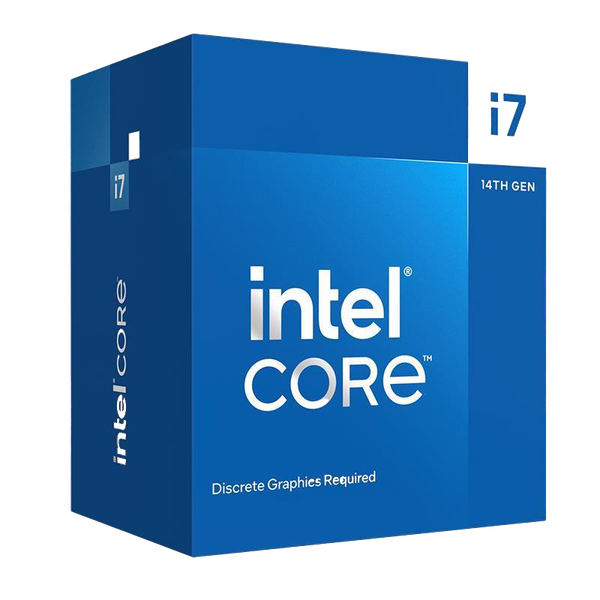

Intel Core i7 processor 14700F 33M Cache up to 5.40 GHz - BX8071514700F

Intel Core i7-14700F is a desktop processor produced by Intel for socket LGA-1700 that has 20 cores and 28 threads. It does not have integrated graphics. The size of the L3 cache is 33 MB

Specification:

Model    i7-14700F
Product Collection    Intel® Core™ i7 Processors (14th gen)
Code Name    Products formerly Raptor Lake
Vertical Segment    Desktop
Lithography    Intel 7
Use Conditions    PC/Client/Tablet
CPU Specifications
Total Cores    20
# of Performance-cores    8
# of Efficient-cores    12
Total Threads    28
Max Turbo Frequency    5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡    5.4 GHz
Performance-core Max Turbo Frequency    5.3 GHz
Efficient-core Max Turbo Frequency    4.2 GHz
Performance-core Base Frequency    2.1 GHz
Efficient-core Base Frequency    1.5 GHz
Cache    33 MB Intel® Smart Cache
Total L2 Cache    28 MB
Processor Base Power    65 W
Maximum Turbo Power    219 W
Memory Specifications
Max Memory Size (dependent on memory type)    192 GB
Memory Types    Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels    2
Max Memory Bandwidth    89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision    4.0
Max # of DMI Lanes    8
Scalability    1S Only
PCI Express Revision    5.0 and 4.0
PCI Express Configurations ‡    Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes    20
Package Specifications
Sockets Supported    FCLGA1700
Max CPU Configuration    1
Thermal Solution Specification    PCG 2020C
TJUNCTION    100°C
Package Size    45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator    3.0
Intel® Thread Director    Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU    Yes
Intel® Speed Shift Technology    Yes
Intel® Turbo Boost Max Technology 3.0 ‡    Yes
Intel® Turbo Boost Technology ‡    2.0
Intel® Hyper-Threading Technology ‡    Yes
Intel® 64 ‡    Yes
Instruction Set    64-bit
Instruction Set Extensions    Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States    Yes
Enhanced Intel SpeedStep® Technology    Yes
Thermal Monitoring Technologies    Yes
Intel® Volume Management Device (VMD)    Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡    Yes
Intel® Control-Flow Enforcement Technology    Yes
Intel® AES New Instructions    Yes
Secure Key    Yes
Intel® OS Guard    Yes
Execute Disable Bit ‡    Yes
Intel® Boot Guard    Yes
Mode-based Execute Control (MBEC)    Yes
Intel® Virtualization Technology (VT-x) ‡    Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡    Yes
Intel® VT-x with Extended Page Tables (EPT) ‡    Yes
Warranty    3 Years
