Brand: MSI

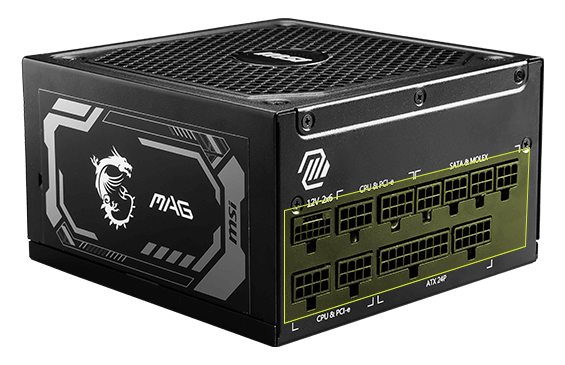

MSI MAG A1000GL PCIE5 ATX 3.1 SMPS
MSI MAG A1000GL PCIE5 ATX 3.1 SMPS
SKU : MAG-A1000GL-PCIE5
Ships: Within 3 to 4 days Post Order
Delivery : Express 3-5 Days!   Standard 5-9 Days!
Get it between -
Couldn't load pickup availability
MSI MAG A1000GL PCIE5 ATX 3.1 SMPS having ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector, including Fully modular design, flat cables and 80 PLUS Gold certified for high efficiency
Features:
ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
Supports NVIDIA® GeForce RTX™ 40 series graphics cards
Fully modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design
Protection with OVP / OCP / OPP / OTP / SCP / UVP
135 mm fluid dynamic bearing fan
LLC half bridge topology with DC-to-DC module design
ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specifications:
Model Number MAG A1000GL PCIE5
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (fully modular)
Fan Size 135 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 150 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100-240V~
Power Watt 1000W
Power Excursion 2000W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range 50-60Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.1 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 12
MOLEX (4 pin) 4
FDD (4 pin) 1
Warranty 7 Years
