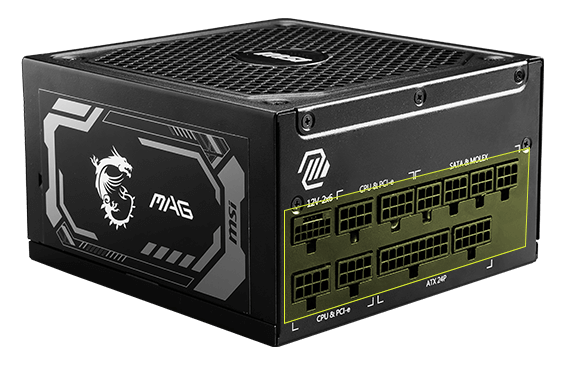

MSI MAG A1250GL PCIE5 ATX 3.1 SMPS

MSI MAG A1250GL PCIE5 ATX 3.1 SMPS having ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector, including Fully modular design, flat cables and 80 PLUS Gold certified for high efficiency
Features:

ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
Supports NVIDIA® GeForce RTX™ 40 series graphics cards
Fully modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design
Protection with OVP / OCP / OPP / OTP / SCP / UVP
135 mm fluid dynamic bearing fan
LLC half bridge topology with DC-to-DC module design
ATX 3.1 READY
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

HALF BRIDGE LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications:

 Model Name     MAG A1250GL PCIE5
 EFFICIENCY RATING     80 PLUS Gold (up to 90%)
 MODULAR     Yes (fully modular)
 FAN SIZE     135 mm
 FAN BEARING     Fluid Dynamic Bearing
 DIMENSIONS (DXWXH)     150 x 150 x 86 mm
 PFC TYPE     Active PFC
 INPUT VOLTAGE RANGE     100-240V~
 POWER WATT     1250W
 POWER EXCURSION     2500W (*up to 200% of the PSU's rated power for 100μs)
 INPUT FREQUENCY RANGE     50-60Hz
 PROTECTION     OCP / OVP / OPP / OTP / SCP / UVP
 ATX (24 PIN)     1
 EPS (4+4 PIN)     2
 PCI-E 5.1 (16 PIN)     1 (600W)
 PCI-E (6+2 PIN)     4
 SATA (15 PIN)     12
 MOLEX (4 PIN)     4
 FDD (4 PIN)     1
 Warranty     7 Years
