Brand: MSI

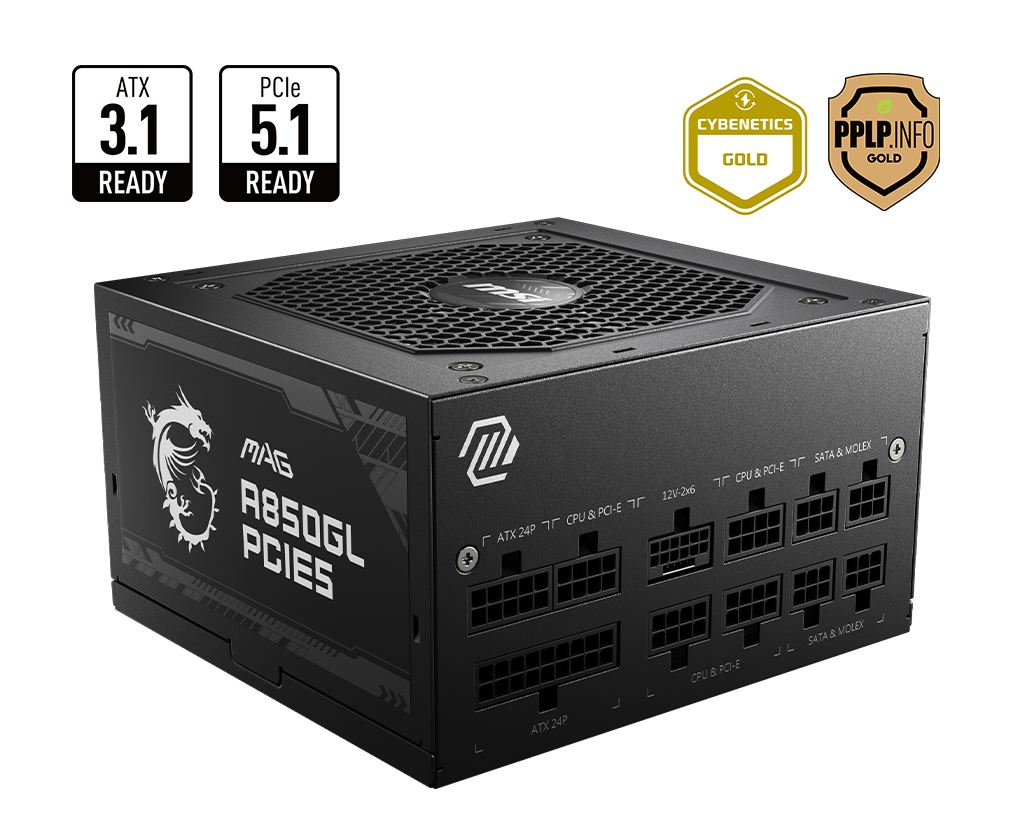

MSI Mag A850GL PCIE5 ATX 3.1 Gold Fully Modular SMPS
MSI Mag A850GL PCIE5 ATX 3.1 Gold Fully Modular SMPS
SKU : MAG-A850GL-PCIE5-ATX-3-1
Ships: Within 3 to 4 days Post Order
Delivery : Express 3-5 Days!   Standard 5-9 Days!
Get it between -
Couldn't load pickup availability
MAG A850GL PCIE5 is a high-performance 850 Watt ATX 3.1 ready power supply. It features an 80 Plus Gold certification, full modular design, industrial-grade protection, 120mm fluid dynamic bearing fan. It is ideal for NVIDIA GeForce RTX 40 Series GPUs
Features:
MAG A850GL PCIE5
ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
Supports NVIDIA GeForce RTX 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
120mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC module design
Specification:
Model Β Β MAG A850GL PCIE5
Efficiency Rating Β Β 80 PLUS Gold (up to 90%)
Modular Β Β Yes (full modular)
Fan Size Β Β 120 mm
Fan Bearing Β Β Fluid Dynamic Bearing
Dimensions (DxWxH) Β Β 140 x 150 x 86 mm
PFC Type Β Β Active PFC
Input Voltage Range Β Β 100~240 VAC
Power Watt Β Β 850W
Power Excursion Β Β 1700W (*up to 200% of the PSU's rated power for 100ΞΌs)
Input Frequency Range Β Β 47-63Hz
Protection Β Β OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) Β Β 1
EPS (4+4 pin) Β Β 2
PCI-E 5.0 (16 pin) Β Β 1 (600W)
PCI-E (6+2 pin) Β Β 4
SATA (15 pin) Β Β 8
MOLEX (4 pin) Β Β 4
FDD (4 pin) Β Β 1
Warranty Β Β 7 Years
