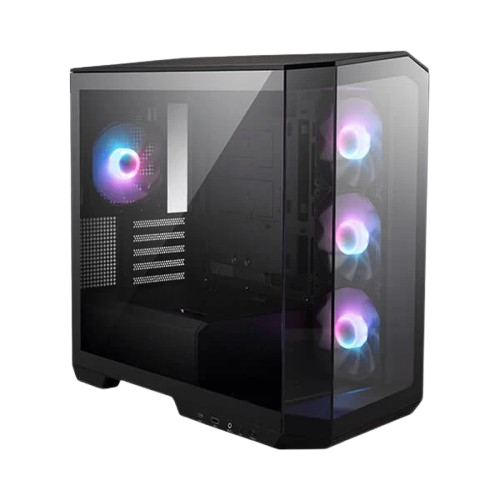

MSI MAG PANO M100R PZ ARGB (M-ATX) Mid Tower Cabinet (Black)
MSI MAG PANO M100R PZ ARGB (M-ATX) Mid Tower Cabinet (Black)
SKU : MAG-PANO-M100R-PZ
Get it between -
MSI MAG PANO M100R PZ is a black color Cabinet Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects. The Magnetic Dust Filter at the bottom being easily removed for cleaning.
Features:
Micro-ATX Back-connect motherboard compatible.
Supports up to 360 mm AIO liquid cooler on the top.
270-degree panoramic tempered glass.
Supports up to 10 x 120 mm system fans.
Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
The Magnetic Dust Filter at the bottom being easily removed for cleaning.
DIY Friendly cables make your DIY process easier and create more possibilities to your system.
Specification:
Model MAG PANO M100R PZ
Color Black
Case Form Factor Micro- ATX Tower
Motherboard Form Factor Support M-ATX(Back-connect supported) / ITX
I/O Ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive Mount Support
1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Expansion Slots 5
Maximum GPU Length 390 mm / 15.35 inches
*Support horizontal installation only
Maximum CPU Cooler Height 175 mm / 6.9 inches
Power Supply Support ATX
Maximum PSU Length 200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Dimensions (DxWxH) 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
Connection
1x USB 3.2 Gen 2x2 Type-C
1x USB 3.2 Gen 1 Type-A
Mic In/ Audio Out
LED Switch Button
Power Button
Cooling Warranty 1 Year
