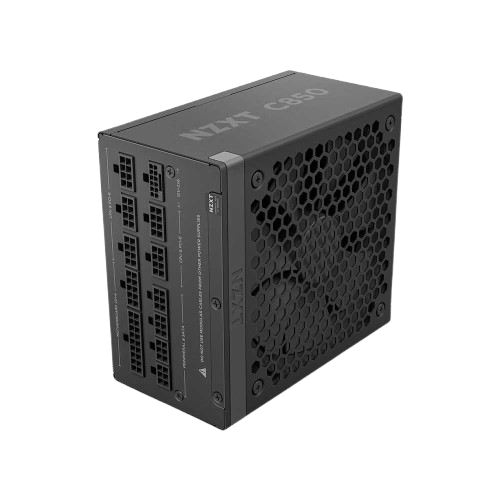

Nzxt C850 Gold Fully Modular ATX 3.1 SMPS
Nzxt C850 Gold Fully Modular ATX 3.1 SMPS
SKU : PA-8G2BB-UK
Ships: Within 3 to 4 days Post Order
Delivery : Express 3-5 Days!   Standard 5-9 Days!
Get it between -
Couldn't load pickup availability
NZXT C850 White Gold ATX 3.1 PSU is ready to fuel the demands of RTX 40 Series graphics card. Its robust design and modularity make it ideal for users looking to build a clean, efficient system for gaming, content creation, and demanding computing tasks
Features:
C850 Gold ATX 3.1
850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA GeForce RTX 40 Series graphics cards.
135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
Compact form factor frees up valuable room for cable management and more case airflow.
Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
Β Specification:
Model Name Β Β SMPS NZXT C850 80+ GOLD ATX 3.1 BLACK
Model Part Number Β Β PA-8G2BB-UK
Output ConnectorsΒ
24-pin ATX Power Cable Β Β 1
4+4-pin CPU Power Cable Β Β 1
8-pin CPU Power Cable Β Β 1
6+2-pin PCIe Power Cable Β Β 3
16-pin (12+4) 12V-2x6 PCIe Cable Β Β 1
SATA Cable Β Β 12
Peripherals Cable Β Β 4
Cable SpecsΒ
24-pin ATX Power Cable Β Β 600mm with nylon sleeving
4+4-pin CPU Power Cable Β Β 700mm with nylon sleeving
8-pin CPU Power Cable Β Β 700mm with nylon sleeving
6+2-pin PCIe Power Cable Β Β 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable Β Β 650mm with nylon sleeving
SATA Cable Β Β 500 + 150mm
Peripherals Cable Β Β 500 + 150mm
AC Input RatingΒ
100 - 240Vac Β Β 13A 50Hz-60Hz
200 - 240Vac Β Β 6.5A 50Hz-60Hz (China & South Korea)
DC Output RatingΒ
3.3V / +5V Β Β 22A (120W)
12V Β Β 83.3A (1000W)
5Vsb Β Β 3A (15W)
Total Β Β 1000W
Energy EfficiencyΒ
Rating Β Β 80 Plus Gold
10% loading Β Β 85.5% @115Vac
20% loading Β Β 89.7% @115Vac
50% loading Β Β 91.9% @115Vac
100% loading Β Β 89.3% @115Vac
Electrical FeaturesΒ
PF Correction Β Β Active @0.99
Protections Β Β OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan SpecsΒ
Dimensions Β Β 135 x 135 x 25 mm
Speed Β Β 2300 Β± 10% RPM
Airflow Β Β 93.02 CFM (Min.)
Noise Β Β 44.5 dBA max
Bearing Β Β Fluid Dynamic Bearing (FDB)
OperationΒ
MTBF Β Β 100,000 hours
Temperature Β Β 0 - 50 Β°C
DimensionsΒ
Width Β Β 150 mm
Height Β Β 86 mm
Depth Β Β 160 mm
GeneralΒ
Material(s) Β Β Steel, PCB and Plastic
Compliance Standard Β Β ATX12V v3.1 / EPS12V v2.92
Regulation & Certification Β Β FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Warranty Β Β 10 Years
