Brand: Nzxt

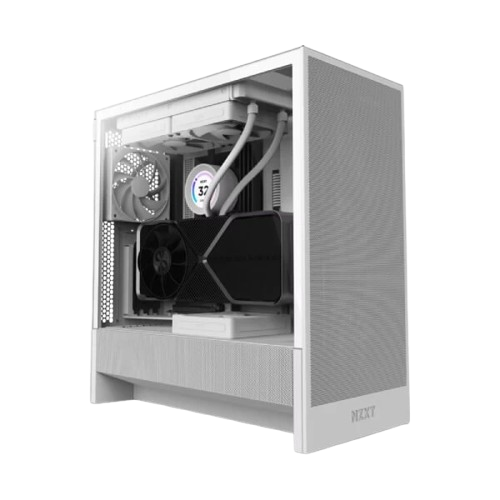

Nzxt H5 Flow 2024 Edition E-ATX White Mid Tower Case
Nzxt H5 Flow 2024 Edition E-ATX White Mid Tower Case
SKU : CC-H52FW-01
Ships: Within 3 to 4 days Post Order
Delivery : Express 3-5 Days!   Standard 5-9 Days!
Get it between -
Couldn't load pickup availability
H5 Flow white mid-tower case enhances airflow and GPU cooling with its perforated PSU shroud, mesh panels, and support for large radiators. Featuring two pre-installed 120mm Quiet Airflow fans and smart cable management options.
Features:
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator supportβall in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with two 120mm Quiet Airflow fans (CV) βone in front, one in rearβfor solid out-of-the-box performance.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)βone in front, one in rearβfor out-of-the-box cooling. *Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specification:
Model Name Β Β CC-H52FW-01
Key SpecsΒ
Motherboard Support Β Β E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type Β Β Mid-Tower
Case Material Β Β SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
DimensionsΒ
Height (with feet) Β Β 465 mm / 18.31 in
Width Β Β 225 mm / 8.86 in
Depth Β Β 430 mm / 16.93 in
Weight Β Β 7.28 kg / 16.04 lb
Compatibility & ClearanceΒ
CPU Cooler Height Β Β Up to 170 mm
GPU Length Β Β Up to 410 mm
PSU Length Β Β Up to 200 mm
Cable Management Β Β Up to 28.7 mm
Top Radiator Β Β Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness Β Β Up to 55 mm
Front PortsΒ
USB 3.2 Type-A Β Β 1
USB 3.2 Type-C Β Β 1
Headset Audio Jack Β Β 1
Expansion SlotsΒ
Standard Β Β 7
Vertical Β Β 0
Drive BaysΒ
2.5" Β Β 2
3.5" Β Β 1
Fan SupportΒ
Front Β Β 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top Β Β 2 x 120 mm / 2 x 140 mm
Bottom Β Β 2 x 120 mm
Rear Β Β 1 x 120 mm (1 x F120Q Case Version included)
Radiator SupportΒ
Front Β Β Up to 360 mm
Up to 360 mm Β Β Up to 240 mm (280mm with low-profile memory only)
Fan SpecsΒ
Model Β Β F120Q (Case Version)
Speed Β Β 1,350 Β± 150 RPM
Airflow Β Β 60.2 CFM
Static Β Β 1.05 mm-HβO
Noise Β Β 24.1 dBA
Fan Connector Β Β 3-pin
Warranty Β Β 2Years
