Brand: Nzxt

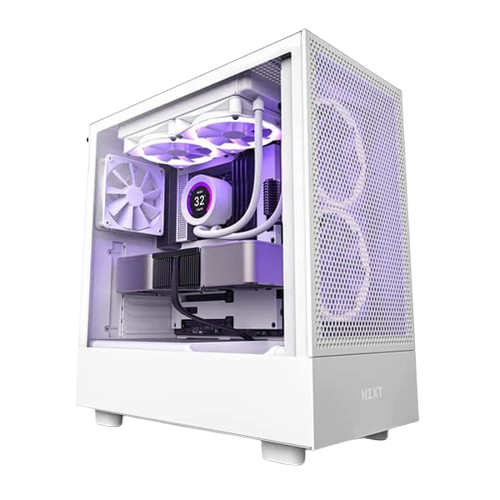

Nzxt H5 Flow (E-ATX) Mid Tower Cabinet (White)
Nzxt H5 Flow (E-ATX) Mid Tower Cabinet (White)
SKU : CC-H51FW-01
Ships: Within 3 to 4 days Post Order
Delivery : Express 3-5 Days!   Standard 5-9 Days!
Get it between -
Couldn't load pickup availability
The H5 Flow E-ATX Mid Tower white cabinet features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance
Features:
The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Dedicated fan on bottom inside panel is angled to cool GPU
Perforated front panel provides optimal ventilation
Intuitive cable management system with wide channels, hooks, & straps
Tool less access to front and side panels
Front panel supports up to 2 x 140mm fans or 280mm radiator
Top panel supports up to 2 x 120mm fans or 240mm radiator
Includes two pre-installed F120Q fans
Specifications:
Key Specs
Motherboard Support Β Β Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)
Enclosure Type Β Β Mid-Tower
Case Material Β Β SGCC Steel, Tempered Glass
Dimensions
Height Β Β 464mm (With Feet)
Width Β Β 227mm
Depth Β Β 446mm
Weight Β Β 7.01 kg
Drive Bays
2.5" Β Β 1+1
3.5" Β Β 1
Fan Support
Front Β Β 2 x 120mm / 2 x 140mm
Top Β Β 2 x 120mm
Rear Β Β 1 x F Series Quiet 120mm (Case Version) included
Bottom Β Β 1 x F Series Quiet 120mm (Case Version) included
Compatibility & Clearance
Max CPU Cooler Clearance Β Β Up to 165mm
Max GPU Clearance Β Β Up to 365mm
Front Radiator Clearance Β Β 45mm
Cable Management Β Β Up to 23mm
Radiator SupportΒ
Front Β Β Up to 280mm
Top Β Β Up to 240mm
Rear Β Β Up to 120mm
Front I/O PortsΒ
USB 3.2 Gen 1 Type-A Β Β 1
USB 3.2 Gen 2 Type-C Β Β 1
Headset Audio Jack Β Β 1
Fan Specs
Model Β Β F120Q (Case Version)
Speed Β Β 1200 Β± 240RPM
Airflow Β Β 62.18 CFM
Static Β Β 1.05 mm - H2O
Noise Β Β 25.1 dBA
Fan Connector Β Β 3-pin
Β Expansion Slots
Standard Β Β 7
Vertical Β Β 0
Warranty Β Β 2 Years
