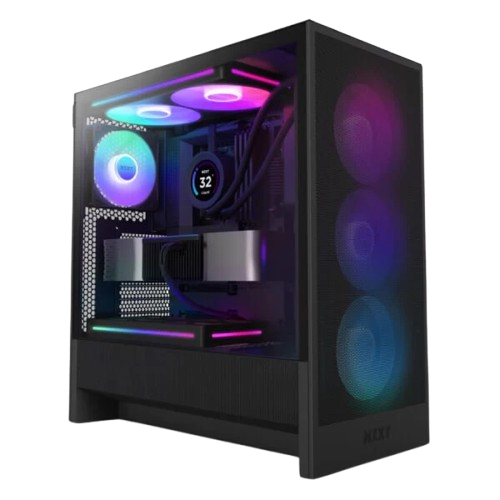

Nzxt H5 Flow RGB 2024 Edition E-ATX Mid Tower Case

H5 Flow RGB mid-tower case enhances airflow and GPU cooling with its perforated PSU shroud, mesh panels, and support for large radiators. Featuring two pre-installed 120mm fans and smart cable management options.
Features:

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Pre-Installed Fans*

Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

*Case Version (3-pin DC)

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Tool-less Access

Easily open up the front, side, and top panels without any tools.

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Specification:

Model    H5 Flow RGB
P/N    CC-H52FB-R1
Color    Black
Key Specs
Motherboard Support    E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type    Mid-Tower
Case Material    SGCC Steel,Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet)    465 mm / 18.31 in
Width    225 mm / 8.86 in
Depth    430 mm / 16.93 in
Weight    7.63 kg / 16.82 lb
Compatibility & Clearance
CPU Cooler Height    Up to 170 mm
GPU Length    Up to 410 mm
PSU Length    Up to 200 mm
Cable Management    Up to 28.7 mm
Top Radiator    Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness    Up to 55 mm
Front Ports
USB 3.2 Type-A    1
USB 3.2 Type-C    1
Headset Audio Jack    1
Expansion Slots
Standard    7
Vertical    0
Drive Bays
2.5"    2
3.5"    1
Fan Support
Front    3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
Top    2 x 120 mm / 2 x 140 mm
Bottom    2 x 120 mm
Rear    1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front    Up to 360 mm
Top    Up to 240 mm (280mm with low-profile memory only)
Fan Specs
Model    F360 RGB Core (Case Version)
Speed    1,700 ± 200 RPM
Airflow    50.1 CFM
Static    1.27 mm-H₂O
Noise    23.3 dBA
Fan Connector    3-pin
Fan Specs
Model    F120Q (Case Version)
Speed    1,350 ± 150 RPM
Airflow    60.2 CFM
Static    1.05 mm-H₂O
Noise    24.1 dBA
Fan Connector    3-pin
Warranty    2 Years
