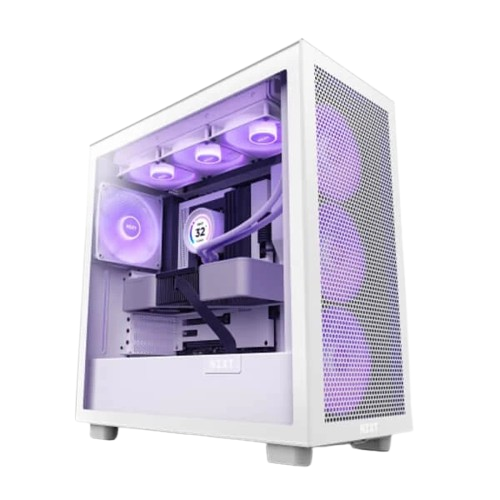

Nzxt H7 Flow RGB (ATX) Mid Tower Cabinet (White)
Nzxt H7 Flow RGB (ATX) Mid Tower Cabinet (White)
SKU : Nzxt H7 Flow RGB (ATX) Mid Tower Cabinet (White)
Get it between -
NZXT H7 Flow RGB Cabinet comes with white color design. It is featuring with three pre-installed 140mm RGB Core fans and one F120Q Quiet Airflow fans. Two top-mounted USB 3.2 Type-A ports, one top-mounted USB 3.2 Type-C port.
Features:
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
Perforated front & top panels enable maximum thermal performance
Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels (tinted panels on black variant only)
Front & top support radiators up to 360mm
Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
Supports vertical GPU mounting (Sold Separately)
Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
Specifications:
Model Number Β Β CM-H71FW-R1
Β Key Specs
Motherboard Support Β Β Mini-ITX, Micro-ATX, ATX
Enclosure Type Β Β Mid-Tower
Case Material (Black) Β Β SGCC Steel, Dark Tinted Tempered Glass
Β Fan Support
Front Β Β 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top Β Β 3 x 120mm / 2 x 140mm
Rear Β Β 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters Β Β All Air Intakes
Β Dimensions
Height (With Feet) Β Β 505mm
Height (Without Feet) Β Β 480mm
Width Β Β 230mm
Depth Β Β 480mm
Weight Β Β 10.57kg
Β Radiator Support
Front Β Β Up to 360mm with Push/Pull
Top Β Β Up to 360mm
Rear Β Β Up to 140mm
Β Compatibility & Clearance
Max CPU Cooler Clearance Β Β Up to 185mm
Max GPU Clearance Β Β Up to 400mm
Front Radiator Clearance Β Β 60mm
Cable Management Β Β 18-22mm
Top Radiator Clearance Β Β 30mm
PSU Clearance Β Β Up to 200mm
Β Fan Specs
Model Β Β F140 RGB Core Fan (Case Version)
Speed Β Β 1200 Β± 120 RPM
Airflow Β Β 61.74 CFM
Static Pressure Β Β 2.06mm-H2O
Noise Β Β 29.05 dBA
Fan Connector Β Β 3-pin
Front I/O PortsΒ
USB 3.2 Gen 1 Type-A Β Β 2
USB 3.2 Gen 2 Type-C Β Β 1
Headset Audio Jack Β Β 1
Β Fan Specs
Model Β Β F120Q Β (Case Version)
Speed Β Β 1200 Β± 240RPM
Airflow Β Β 62.18 CFM
Static Pressure Β Β 1.05 mm-H2O
Noise Β Β 25.1 dBA
Fan Connector Β Β 3-pin
Β Expansion Slots
Standard Β Β 7
Vertical Β Β 0
Β Drive Bays
2.5" Β Β 4+2
3.5" Β Β 2
Warranty Β Β 2 Years
