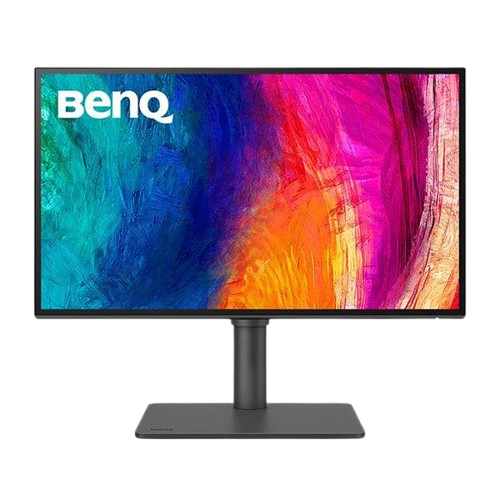

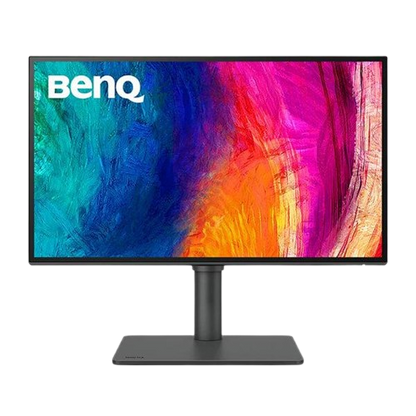

PD2506Q｜25-inch 2K QHD P3 USB-C Designer Monitor

Designers access impeccable color performance and enhanced productivity tools in PD2506Q. The upgraded color gamut includes P3 and Rec.709 coverage, and USB-C connectivity empowers more efficient image and data transmission experience.
Key Features:

    25” QHD DCI-P3 HDR Designer Monitor
    Factory Calibrated 95% P3/ 100% Rec.709
    USB-C for 65W Power delivery
    One Click Applies Keyboard Video Mouse (KVM) Switch

Incredible Color Space Coverage

PD2506Q covers 95% P3, 100% sRGB, and 100% Rec.709 color spaces with amazing Delta E ≤ 3 ensures superb accuracy and absolute color confidence.
Factory Calibrated for Color Accuracy

BenQ DesignVue Monitors with factory calibration, designers make full use of color accuracy on a monitor.
Amazing P3 Colors for Creative Works

PD2506Q is equipped with the latest P3 color standards to guarantee a consistent color application among all designers.
BenQ Uniformity Technology

Delivering corner-to-corner authentic colors and consistent luminescence. The display is divided into hundreds of sub-regions and rigorously fine-tuned for precision. This innovative tech assures ultra-dependable image fidelity.
ICCsync Color Consistency

ICCsync allows instant color mode adjustment, controlled through BenQ Display Pilot software or the monitor itself.
HDR Technology

HDR400 offers better results more when you work on designs with better brightness, color uniformity and black level.
KVM Switch

KVM switch design auto-pairs with input signals. Click once to switch systems via Hotkey Puck G2 to boost efficiency.

USB-C

The USB-C port provides lightning-fast video/audio/data transmission and 65W power delivery.
Ergonomic Design

Create in comfort with your monitor in the ideal position.
DisplayPort MST

Multi-Stream Transport Technology allows you to extend screens across multiple displays using the DisplayPort output.
Display Pilot

Display Pilot software lets you access designer-friendly features for ease and efficiency. *Apple M1 platform supported
CAD/CAM Mode

Enjoy superior contrast of lines and shapes in technical illustrations.
Animation Mode

Enhance the clarity of dark areas without overexposing bright regions.
Darkroom Mode

Adjust image brightness and contrast for work in dark environments.

Darkroom Mode Adjust image brightness and contrast for work in dark environments. ePaper Mode
Create with Fresh Eyes

BenQ’s industry-leading eye care technologies reduce eye fatigue while ensuring greater user comfort during long periods of use.
Display
Screen Size     25 inch
Panel Type     IPS
Backlight Technology     LED backlight
Resolution (max.)     2560x1440
Brightness (typ.)     350nits
Brightness (peak)(HDR)     400nits
HDR     HDR10,VESA DisplayHDR 400
Native Contrast     1000:1
Viewing Angle (L/R) (CR>=10)     178°/178°
Response Times (GtG)     5 ms
Refresh Rate (Hz)     60
Color Gamut     100% Rec.709 ,100% sRGB ,95% P3
Color Mode     Animation ,CAD/CAM ,Darkroom ,DCI-P3 ,DICOM ,Display P3 ,ePaper ,HDR ,Low Blue Light ,M-Book ,Rec.709 ,sRGB ,User
Aspect Ratio     16:9
Display Colors     16.7 million color
PPI     109
Display Screen Coating     Anti-Glare
Color Temperature     000K ,6500K ,9300K ,User Define
Gamma     1.8 - 2.6, sRGB
HDCP     2.2
AMA     Yes
Audio
Built-in Speaker     2.5Wx2
Headphone Jack     Yes
Power
Voltage Rating     100 - 240V
Power Supply     Built-in
Power Consumption (normal)     36W
Power Consumption (max)     170W
Power Consumption (sleep mode)     <0.5W
Power Delivery(USB C / Thunderbolt 3)     65W
Dimension And Weight
Tilt (down/up)     -5˚ - 20˚
Swivel (left/right)     15˚/ 15˚
Pivot     90˚
Height Adjustment Stand     110mm
Dimensions (HxWxD) (mm)     550.1-440.1x570.0x256.9
Dimensions (HxWxD) (inch)     21.7-17.3x22.4x10.1
Dimensions (HxWxD) (Pivot) (mm)     669.54x335.15x256.9
Dimensions (HxWxD) (Pivot) (inch)     26.4x13.2x10.1
Dimensions (HxWxD) (w/o Base) (mm)     335.2x570.0x83.3
Dimensions (HxWxD) (w/o Base) (inch)     13.2x22.4x3.3
Net Weight (kg)     7.6
Net Weight (lb)     16.8
Net Weight (w/o Base) (kg)     4.4
Net Weight (w/o Base) (lb)     9.7
VESA Wall Mount     100x100 mm
Accessories
Other Accessories     Calibration Report ,QSG ,Safety Instruction ,Warranty Card
Connectivity
HDMI (v2.0)     1
DisplayPort (v1.4)     1
DisplayPort out (MST)     Yes
USB C(PowerDelivery 65W, DisplayPort Alt Mode, Data)     1
Daisy Chain Technology     DP out (MST)
USB Type B ( Upstream )     1
USB C ( Downstream )     1
USB 3.2 ( Downstream )     3
Eye Care
Flicker-free Technology     Yes
Low Blue Light     Yes
ePaper     Yes
Certification
TUV Certificate     Flicker-free ,Low Blue Light
Solidworks     Yes
calman verified     Yes
Pantone Validated     Yes
Pantone SkinTone™ Validated     Yes
Professional
Video Format Support     Yes
Factory Calibration Report     Yes
Delta E(avg)     ≤3
Animation mode     Yes
CAD/CAM mode     Yes
Darkroom mode     Yes
KVM Switch     Yes
Auto Pivot     Yes
Uniformity Technology     Yes
ICCsync     Yes
Software
Display Pilot     Yes
Warranty     3 Years
Weight     1 kg
Brands

Benq
Product Type

Normal
Display Panel

IPS
Refresh Rate

60Hz
Display Type

LCD
Resolution

2560 * 1440, QHD
Response Time

5ms
Screen Size

25
Warranty

3 Years
EAN / UPC Code

4718755089732
