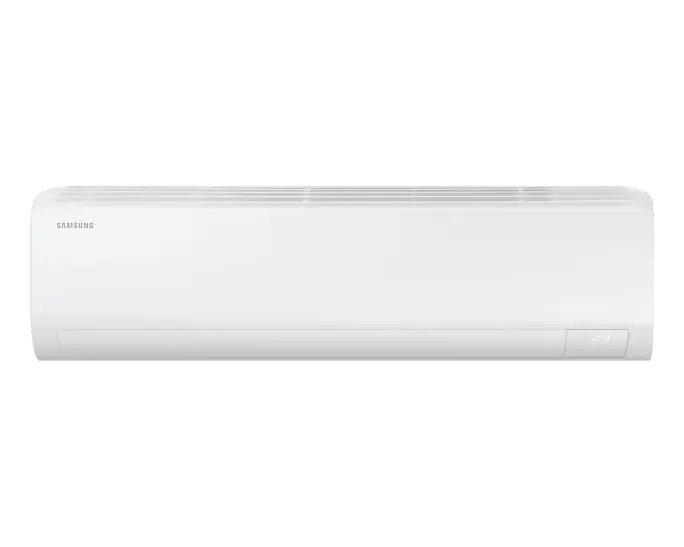

Samsung Inverter Split AC (Hot & Cold), AR50F19C1XH, 5.00 kW (1.5) 3 Star

Specifications

Expand all

Overview

·         Capacity

17061 Btu/hr

·         Capacity (Cooling, kW)

5.00 kW

·         EER (Cooling, W/W)

3.11 W/W

·         Net Dimension (Outdoor, WxHxD)

79.00 cm x 54.80 cm 28.50 cm

Capacity

·         Capacity (Cooling, Btu/hr)

17061 Btu/hr

·         Capacity (Heating, Btu/hr)

18426 Btu/hr

·         Capacity (Cooling, Min - Max, Btu/hr)

4095 - 20473 Btu/hr

·         Capacity (Heating, Min - Max, Btu/hr)

5459 - 19108 Btu/hr

·         Capacity (Cooling, kW)

5.00 kW

·         Capacity (Heating, kW)

5.40 kW

·         Capacity (Cooling, Min - Max, kW)

1.2 - 6 kW

·         Capacity (Heating, Min - Max, kW)

1.6 - 5.6 kW

Energy Efficiency

·         ISEER (W/W)

4.05 W/W

·         EER (Cooling, W/W)

3.11 W/W

·         COP (Heating, W/W)

3.31 W/W

·         Energy Star Rating (Cooling)

3 Star

Noise Level

·         Noise Level (Indoor, High/Low, dBA)

45/26 dBA

·         Noise Level (Outdoor, High/Low, dBA)

53 dBA

Electrical Data

·         Power Source(Φ/V/Hz)

1 / 230 / 50

·         Power Consumption(Cooling, W)

1610 W

·         Power Consumption(Heating, W)

1630 W

·         Operating Current(Cooling, A)

7.1 A

·         Operating Current(Heating, A)

7.2 A

Physical specification

·         Gross Dimension (Indoor, WxHxD)

95.00 cm x 29.00 cm x 37.50 cm

·         Gross Dimension (Outdoor, WxHxD)

92.60 cm x 64.00 cm x 41.20 cm

·         Net Dimension (Indoor, WxHxD)

88.90 cm x 29.90 cm x 21.50 mm

·         Net Dimension (Outdoor, WxHxD)

79.00 cm x 54.80 cm 28.50 cm

·         Gross Weight (Indoor, kg)

11.7 kg

·         Gross Weight (Outdoor, kg)

33.4 kg

·         Net Weight (Indoor, kg)

10.0 kg

·         Net Weight (Outdoor, kg)

28.3 kg

Technical Information

·         Piping Length (Max, m)

30 m

·         Piping Height (Max, m)

15 m

·         SVC Valve (Liquid (ODxL))

6.35

·         SVC Valve (Gas (ODxL))

12.7

·         Moisture Removal (l/hr)

1.93 l/hr

·         Air Circulation (Cooling, ㎥/min)

14.20 ㎥/min

·         Refrigerant (Type)

R32

·         Refrigerant (Charging, kg)

0.95 kg

·         Refrigerant (Charging, tCO2e)

0.64 tCO2e

·         Low Ambient (Cooling, ℃)

15~52 ℃

·         Low Ambient (Heating, ℃)

-10 ~ 24 ℃

·         Outdoor Unit (Compressor Type)

BLDC

·         Outdoor Unit (Anti-Corrosion Fin)

Yes

Air Flow

·         WindFree Cooling

No

·         Air Direction Control (Up/Down)

Auto

·         Air Direction Control (Left/Right)

Auto

·         Air Flow Control Step (Cool/Fan)

5/4

Air Purification

·         PM 1.0 Filter

No

·         Tri Care Filter

No

·         4-in-1 Care Filter

No

·         Copper Anti-bacterial Filter

Yes

·         Auto Clean (Self Cleaning)

Yes

Convenience

·         SmartThings

Yes

·         AI Auto Cooling

Yes

·         Motion Detect Sensor

No

·         Freeze Wash

No

·         Filter Cleaning Indicatior

Yes

·         Indoor Temp. Display

Yes

·         Display On/Off

Yes

·         Beep On/Off

Yes

·         24-Hour Timer

Yes

·         Auto Changeover

Yes

·         Auto Restart

Yes

Operating Mode

·         Auto Mode

Yes

·         Fast Cool

Yes

·         Dry Comfort

No

·         Good Sleep

Yes

·         Eco Mode

No

·         5 Step Mode

Yes

·         Dehumidification

Yes

·         Fan Mode

Yes

·         Quiet

Yes

Smart

·         Wi-Fi Embedded

Yes

App Connectivity

·         SmartThings App Support

Yes
