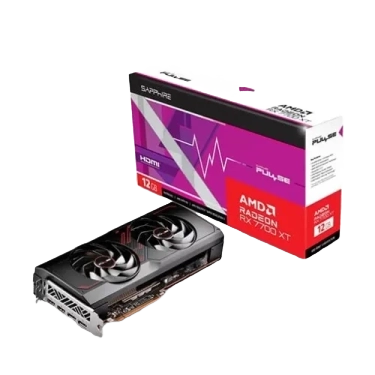

Sapphire Pulse Radeon RX 7700 XT 12GB Gaming Graphics Card

Sapphire Pulse Radeon RX 7700 XT are designed with digital power which provides accurate power control and excellent power efficiency. It’s offering 12GB GDDR6 Memory and have fuse protection built into the circuit of the external PCI-E power connector to

Features:

    Stream Processors: 3456
    RDNA™ 3 Architecture
    Ray Accelerator:54

Digital Power Design
SAPPHIRE PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

    MODEL 11335-04-20G
    CHIPSET AMD RADEON
    GPU RX 7700 XT
    PCI EXPRESS 4.0
    MEMORY SIZE 12 GB
    MEMORY INTERFACE 192-BIT
    MEMORY TYPE GDDR6
    DIRECT X SUPPORT 12 Ultimate
    OPEN GL 4.6
    PORTS
        2x HDMI
        2x DisplayPort
    RESOLUTION 7680 x 4320
    COOLER Dual-Fan
    SOFTWARE Driver & Software
    PACKAGE CONTENTS Graphics Card, User Manual
    POWER CONNECTORS 2 x 8-pin
    WARRANTY 3 Years
