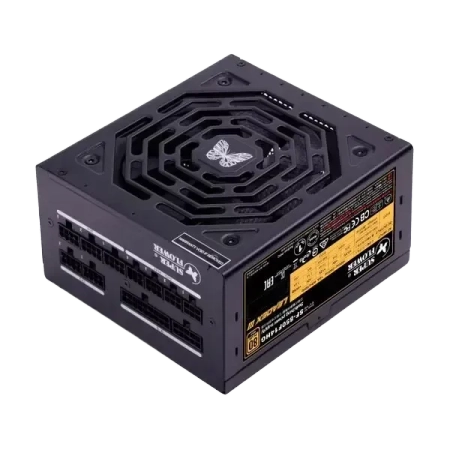

Super Flower Leadex III Gold 850W Fully Modular SMPS

LEADEX III 850 Watt 80+ Gold SMPS with fully modular cable design. It provides high efficiency & stable power output and comes with a 13cm three-way thermal control cooling fan. This Power Supply Support NVIDIA SLI & ATI CrossFireX High Performan
Features:
LEADE XIII SERIES PSU are 80Plus Gold certified with 100% fully modular cable design,our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution,also increase case chassis air flow to have best cooling for your system.

LEADEX III series PSU provides high efficiency & stable power output and come with a 13cm three-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load,also capable of powering your pc system equipped with NVIDIA SLI or ATI CrossFireX setup.

100% Fully Moduler Cabling Design For Easy Cable Design For Easy Cable Management.
FDB fan with dead silent operation: Auto & Two semi-passive modes of thermal fan control system.
+12V/+5V/+3.3V output remain stable:Fix unbalanced load regulation testing on+12V/+5V/+3.3V. (Patent Pending)
The newest EuP technique: highly efficient 5VSB rail with low power consumption.
Dual Over Power protection ensure more complete protection and ultimate safety for end-users.
Great performance on ripple measurement: 10-25mv
Multi-Patent Pending Extreme High Efficency Main Transformer.
OCP & transient response great improvment.
Fully moduler power supply with 80PLUS Gold certification.
High-quality capaciters and semiconductors.
Active PFC, over-and under voltage protection, circuit breaker against overload and over heating.

LOW NOISE THANKS TO TWO SEMI-PASSIVE MODES

Compared to previous LEADEX III series platform,the fan performance has been optimized in order to minimise the Fluid Dynamic Bearing fans played a particularly importent role in making this possible .The end users are able to select between three different cooling modes according to the PC operating environment.

In ECO 0,the fan start operating as soon as the temperatures are between 62 C and 68 C When temperature fall below 47 C and 53 C again,the stops again.

In ECO 1,the temperature threshold at which the fans start is 42 C to 48 C, with the lower threshold being 27 C to 33 C.

Thanks to the low fan speeds and the FDB bearings,the power supply remains extremely quiet even in active active operation.

MODERN PLATFORM,HIGH-QUALITY COMPONENTS

LLC resonance conversion in the primary range and DC-conversion for the+3.3-and+5-volt rails ensure overall system stability
105 degree electrolytic capacitors of japanees brands and polymer solid capaciters are used on the motherboard in order to the best quality.
Complete protection:with protection against over-and undervoltage (OVP,UVP),short cicuit (SCP),overlaod(OPP), overheating (OTP) and overcurrent (OCP on +3.3 and +5 volt rails),the LEADEX III always shuts down in an emergency  to protect valuable hardware (and itself) from damage.

INNOVATIVE DESIGN FOR GAMING SYSTEM & PSU PROTECTION

DC output+12V/+5V/+3V load regulation remain stableGreat Improvment  of unblanaced load in dynamic load testing on 12V/5V/3.3V rail
Dynamic loading (Transient response) improvement on +12V/+5V+3V
+12V output With Exceptional low Ripple Measurements
New patented technology for ultimate safety & performance:Dual Over Power Protection
Multi-Patent Pending Extreme High Efficiency Main Transformer
Specification:

Model    LEADEX III GOLD 850W
Part no.    SF-850F14HG
Wattage    850W
80+ Efficiency    20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold)
Intel Power Design Guide    EPS Ver. 2.92 & ATX 2.52
AC Input | Frequency    100V-240V|60/50Hz Full Range APFC
Fan Size    130mm F.D.B Fan
Dimension    160mm(L) x 150mm(W) x 86mm(H)
Protection    OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Safety    cTUVus / TUV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / CCC
Temperature    Passed 50°C HOT Testing
cable Spec
1 x 20+4pin (600mm)
2 x 8 (4+4Pin)CPU (700mm)
3 x SLI(2 x PCI 6+2Pin (550mm+150mm)
3 x 3SATA (550+120+120mm)
1 x 4Molex (550+100+100+100mm)
1xPCIe 16 Pin (700mm)
Warranty    10 Years
