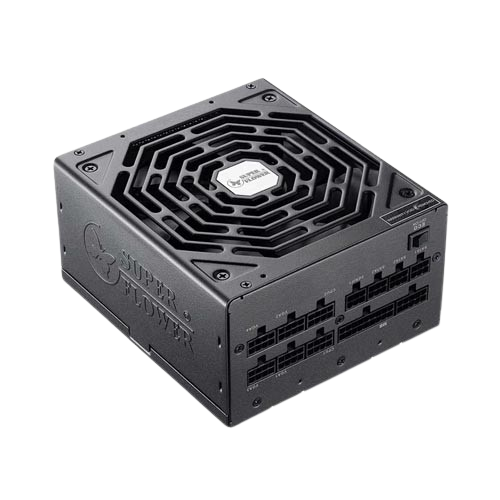

Super Flower Leadex Platinum SE 850W Fully Modular SMPS

Leadex 850 Watt 80+ Platinum SMPS with fully modular cable design. It provides high efficiency & stable power output and comes with a 14cm two-way thermal control cooling fan. This Power Supply Support NVIDIA SLI & ATI CrossFireX High Performance
Features:

Leadex Platinum SE Series PSU are 80PLUS certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.

Leadex Platinum SE Series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA SLI or ATI CrossFireX setup.

100% Full Modular Cabling Design For Easy Cable Management
80 PLUS Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
Full Range Auto Voltage Detection Design 100V-240V (Active PFC)
Comply with ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
Over Voltage Protection /Over Current Protection/Over  Power Protection/Short Circuit Protection/Under Voltage Protection/Over Temperature Protection/No Load Operation/Surge & Inrush Protection.
Support All Intel/AMD Multi-Core CPU & ATX /BTX Compatible Motherboards.
Support NVIDIA SLI or ATI CrossFireX High Performance Graphic Card.
100% Japanese 105°C Capacitors.
Ultra Silent 140mm Dual Ball Bearing Fan.
More than 2000 times On/Off test.
Unleaded Green Materials with RoHS/WEEE Compliance.
Perfect For Professional & High Performance Gaming System.
Exclusive Patents
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the follwing special-Purpose system:
1. Industrial grade sever system.

2. Special ultra-high load operation system (for example: bitcoin mining machine.....etc)

3. Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

Specification:

Model    SF-850F14MP
Wattage    850 W
80+ Efficiency    20%: 90% ; 50%:92% ; 100%:89% (115V Internal Platinum)
Intel Power Design Guide    V2.92
AC Input | Frequency    100-240Vac| 60/50Hz
Fan Size    140mm Dual Ball Bearing Silent Fan
Dimension    165mm(L) x 150mm(W) x 86mm(H)
Protection    OVP/OCP/OPP/SCP/UVP/OTP/NLO/SIP
Safety    cTUVus/TUV/CB/CE/FCC/RCM/BSMI/RoHS/KCC/EAC
Temprature    Passed 50°C Hot Testing
Cable Spec
1 x 20+4Pin (600mm)
2 x (4+4Pin) CPU (700mm)
2 x PCI-E 6+2Pin (700mm)
2 x SLI(2x PCI6+2Pin) (700+150mm)
1 x 4SATA (550+100+100+100mm)
2 x 3SATA (550+100+100mm)
1 x 4Molex (550+100+100+100mm)
1 x Molex Adapter (100mm)
Warranty    10 Years
